Series

ARP

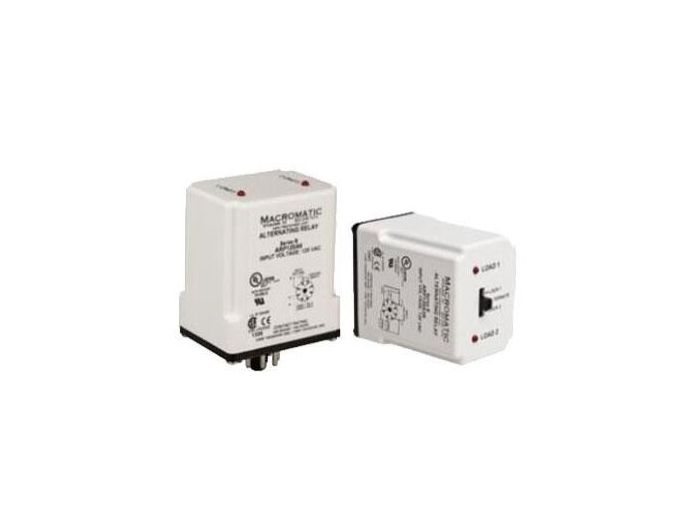

ARP120A5R Macromatic Relays, ARP Series

MFG #:

ARP120A5R

Alternating Relay, 120VAC, DPDT 10A Output, w/Selector Switch, 8 Pin Circular Base

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

ARP

ARP120A5R Macromatic Relays, ARP Series

Name: ARP120A5R Macromatic Relays, ARP Series
Brand: Macromatic
SKU: ARP120A5R-MCRM
Price: 143.70 USD
Availability: BackOrder

MFG #:

ARP120A5R

Alternating Relay, 120VAC, DPDT 10A Output, w/Selector Switch, 8 Pin Circular Base

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	ARP120A5R
Manufacturer	Macromatic
Product Series	ARP
Family Series	Macromatic Relays, ARP Series
Coil Voltage	120 VAC
Operation	2-Channel (Duplexor)
Nominal Coil Voltage	120 VAC
Current Type	AC
Current Rating	10 A
Termination	8-Pin Plug-In
Mounting	Plug-In
Contact Configuration	DPDT (Cross-Wired)
Status Indicator	Yes
Approvals	CE, CSA, UL, UR
H x W x D	1.70 " x 2.40 " x 3.10 "
Net Weight	0.258 lbs
Gross Weight	0.258 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Image	Part	Description	Series	SKU	Price	Action
	70169-D	Socket, 8-Pin Circular, 10A/600V Max Surface/DIN Mount	Macromatic Relays	70169-D-MCRM	Price unavailable
