AS6M-2Y2P
IDEC Switches, A6 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

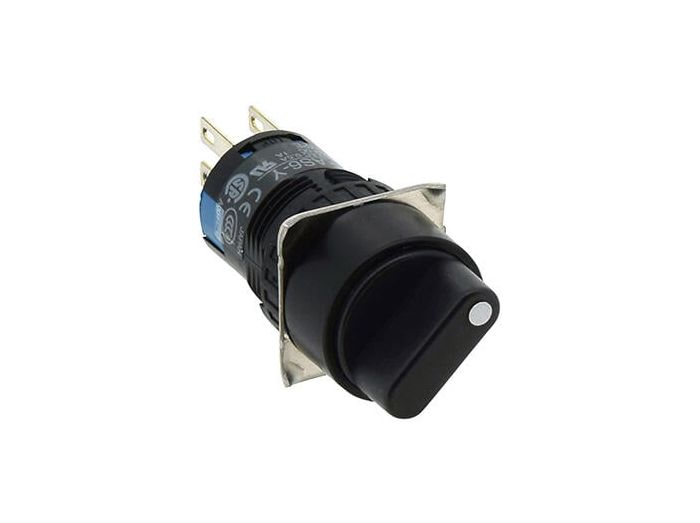

AS6M-2Y2P IDEC Switches, A6 Series
Selector Switch, 2-Pos Maint, DPDT,
MFG Item Number
AS6M-2Y2P
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, A6 Series
Item #
AS6M-2Y2P
Selector Switch, 2-Pos Maint, DPDT,
A6 Series Information
- 16mm Mounting Size
- Maintained or Spring Return
- Solder/Quick Connect Terminals
- IP40 or IP65 Models
- UL; CSA; CE Approvals
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AS6M-2Y2P |
| Manufacturer | IDEC |
| Product Series | A6 |
| Family Series | IDEC Switches, A6 Series |
| Description | Selector Switch, 2-Pos Maint, DPDT, Non-Ill, 16mm Mounting, Round Bezel, 90 Deg Throw, 0.110in. Fast-On Termft.s |
| Illuminated | No |
| Number of Positions | 2 |
| Mounting | 16 mm |
| Selector Function | Maintained |
| Operator Type | Knob |
| Contacts | 2NO, 2NC |
| Max Voltage | 250 VAC, 250 VDC |
| Current Rating | 3 A |
| Operator Color | Black |
| Bezel | Plastic Round |
| Terminal Type | Q.C., Solder |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| Comments | Unibody (Fixed Contacts) |
| H x W x D | 0.65 " x 0.65 " x 1.75 " |
| Net Weight | 0.02 lbs |
| Gross Weight | 0.025 lbs |
