Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | ASD33L20NU |
| Manufacturer | IDEC |
| Product Series | TWND |
| Family Series | IDEC Switches, TWND Series |
| Illuminated | No |
| Number of Positions | 3 |
| Mounting | 30 mm |
| Selector Function | Momentary 2-Way Return-to-Center |
| Operator Type | Lever |
| Contacts | 2NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Operator Color | Black |
| Bezel | Metal Hex |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 5, NEMA 3S |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| H x W x D | 1.55 " x 1.80 " x 2.70 " |
| Net Weight | 0.205 lbs |
| Gross Weight | 0.225 lbs |
Description
Switches, TWND Series
Item #
ASD33L20NU
Selector Switch, 3-Pos Mom, 2NO,
TWND Series Information
- Slow Break NC or NO Contact Operation
- 600 Rated Insulation Voltage and 10 Amp Rated Thermal Current
- Comply with UL508, CSA C22.2 Standards
Documents & Resources Links
Added to Cart

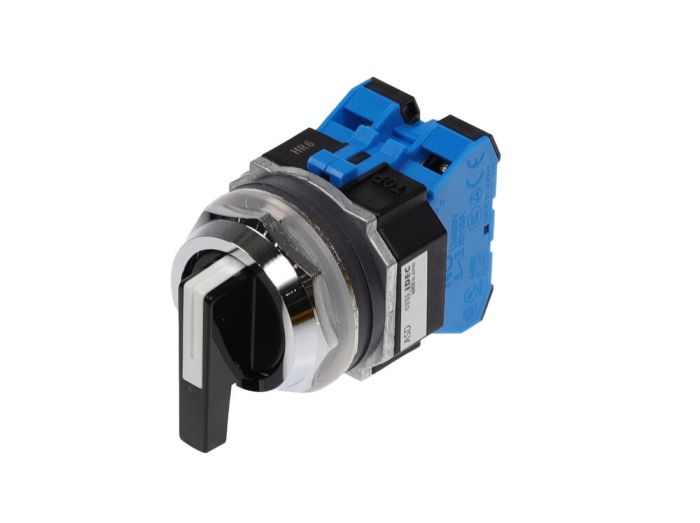

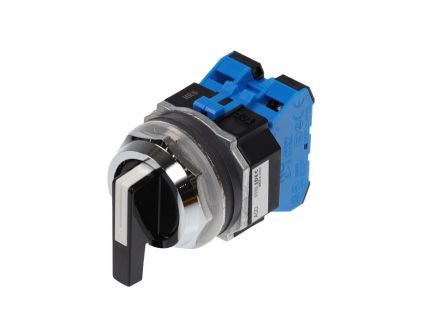

ASD33L20NU IDEC Switches, TWND Series, Selector Switch, 3-Pos Mom, 2NO,
Series TWND
MFG #:
ASD33L20NU
Selector Switch, 3-Pos Mom, 2NO, Non-Ill, 30mm Mounting, Includes 2NO Contact Blocks
