Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | ASLW39940D-G-120V |
| Manufacturer | IDEC |
| Product Series | TW |
| Family Series | IDEC Switches, TW Series |
| Illuminated | Yes |
| Number of Positions | 3 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Knob |
| Contacts | 4NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Lamp Type | LED |
| Lamp Voltage | 120 VAC |
| Lens Color | Green |
| Bezel | Metal Round |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 5, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| Comments | Please see literature for truth table. Exposed Screw |
| H x W x D | 1.46 " x 1.18 " x 4.27 " |
| Net Weight | 0.2183 lbs |
| Gross Weight | 0.2183 lbs |
Description

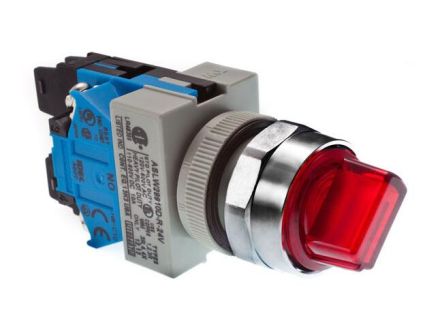

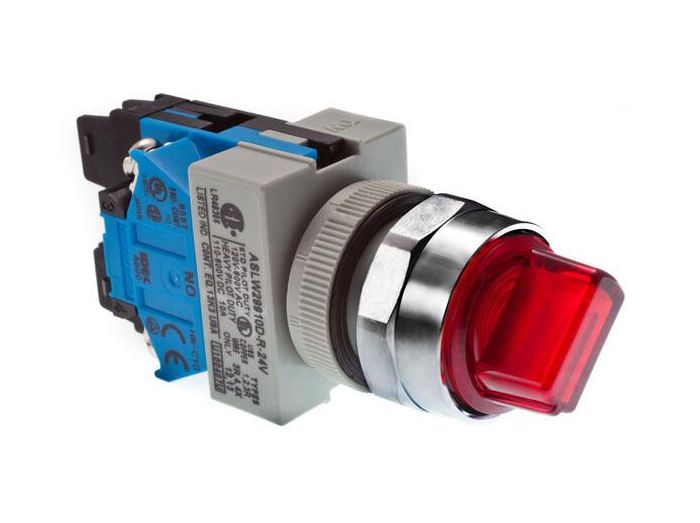

Switches, TW Series
Item #
ASLW39940D-G-120V
SEL/SWITCH 22MM 3POS LED MAINT
TW Series Information
- 22mm Mounting Size
- Incandescent or LED Types
- Standard Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Corrosion Resistant Chrome Bezel
- Fracture‑Resistant Nylon Body
