Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | ASW3120 |
| Manufacturer | IDEC |
| Product Series | TW |
| Family Series | IDEC Switches, TW Series |
| Illuminated | No |
| Number of Positions | 3 |
| Mounting | 22 mm |
| Selector Function | Momentary Spring Return From Right |
| Operator Type | Knob |
| Contacts | 2NO |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Operator Color | Black |
| Bezel | Metal Round |
| Terminal Type | Screw |
| NEMA Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 5, NEMA 3S |
| Protection Rating | IP65 |
| Comments | Please see literature for truth table. Exposed Screw |
| H x W x D | 1.46 " x 1.18 " x 2.89 " |
| Net Weight | 0.0948 lbs |
| Gross Weight | 0.15 lbs |
Description
Switches, TW Series
Item #
ASW3120

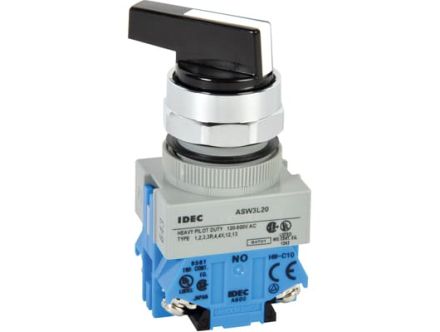

Selector Switch, 3-Pos L/C/(R), 2NO,
TW Series Information
- 22mm Mounting Size
- Maintained or Spring Return
- Standard Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Corrosion Resistant Chrome Bezel
- Fracture‑Resistant Nylon Body
Documents & Resources Links
Videos
Added to Cart
ASW3120 IDEC Switches, TW Series, Selector Switch, 3-Pos L/C/(R), 2NO,
Series TW
MFG #:
ASW3120
Selector Switch, 3-Pos L/C/(R), 2NO, Non-Ill, 22mm Mounting, Knob Oper, 2NO Cotnact Blocks
