ATP120A1R Macromatic Relays, ATP Series
Alternating Relay/Triplexer, 120VAC,
MFG Item Number
ATP120A1R
Macromatic

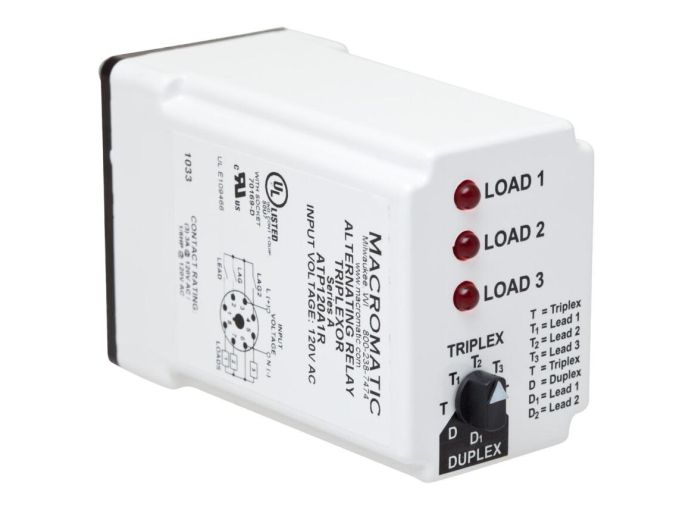

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ATP120A1R Macromatic Relays, ATP Series

Alternating Relay/Triplexer, 120VAC,
MFG Item Number
ATP120A1R
Macromatic
Series
ATP
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Relays, ATP Series
Item #
ATP120A1R
Alternating Relay/Triplexer, 120VAC,

ATP Series Information

  • Three Switch Input
  • Control Triplex Loads
  • Range of Control voltages
The ATP Series triplexors are used in three load applications requiring both the optimization of load usage by equalizing the run time of multiple loads and additional capacity in case of excess load requirements. All versions offer an indication of a switch failure; LEDS will flash if any switch closes out of sequence.
  • Plug‑in enclosures
  • Input switch failure

Links

Specifications

Specifications
Country of Origin United States
Manufacturer Part Number ATP120A1R
Manufacturer Macromatic
Product Series ATP
Family Series Macromatic Relays, ATP Series
Description Alternating Relay/Triplexer, 120VAC, Includes Switch, 8-Pin Base
Coil Voltage 120 VAC
Operation 3-Channel (Triplexor)
Nominal Coil Voltage 120 VAC
Current Type AC
Current Rating 35 A
Termination 8-Pin Plug-In
Mounting Plug-In
Contact Configuration 1NO
Status Indicator Yes
Approvals cURus, UL
H x W x D 2.40 " x 1.70 " x 3.90 "
Net Weight 0.527 lbs
Gross Weight 0.527 lbs
