AVLD32202DNUR
IDEC Switches, TWND Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
AVLD32202DNUR IDEC Switches, TWND Series

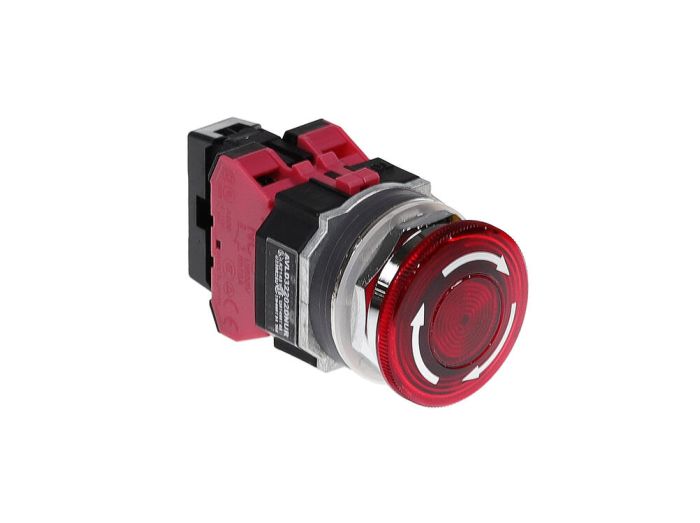

PLTR Pushbutton, Red, 40mm Mush, 24V
MFG Item Number
AVLD32202DNUR
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, TWND Series
Item #
AVLD32202DNUR
PLTR Pushbutton, Red, 40mm Mush, 24V
TWND Series Information
- Slow Break NC or NO Contact Operation
- 600 Rated Insulation Voltage and 10 Amp Rated Thermal Current
- Comply with UL508, CSA C22.2 Standards
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AVLD32202DNUR |
| Manufacturer | IDEC |
| Product Series | TWND |
| Family Series | IDEC Switches, TWND Series |
| Description | PLTR Pushbutton, Red, 40mm Mush, 24V Direct, 30mm Mounting, LED, Includes 2NC Contact Blocks |
| Illuminated | Yes |
| Operation | Push Lock-Twist Release |
| Mounting | 30 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Hex |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Material | Polycarbonate |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| Net Weight | 0.245 lbs |
| Gross Weight | 0.27 lbs |
