Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AVLW49902D-R-24V |
| Manufacturer | IDEC |
| Product Series | TW |
| Family Series | IDEC Switches, TW Series |
| Illuminated | Yes |
| Operation | Push Lock-Twist Release |
| Mounting | 22 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.18 " x 1.46 " x 3.52 " |
| Net Weight | 0.2119 lbs |
| Gross Weight | 0.2119 lbs |
Description
Switches, TW Series
Item #
AVLW49902D-R-24V

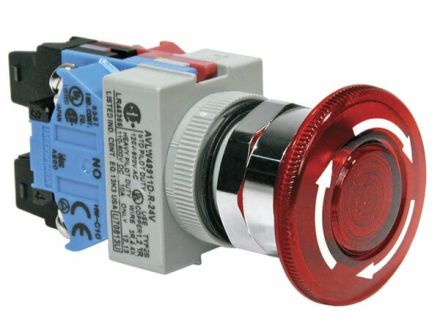

PLTR PUSHBUTTON, 40mm RED MUSH, 24V
TW Series Information
- 22mm Mounting Size
- Incandescent or LED Types
- Standard Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Corrosion Resistant Chrome Bezel
- Fracture‑Resistant Nylon Body
