Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AVW301-R |
| Manufacturer | IDEC |
| Product Series | TW |
| Family Series | IDEC Switches, TW Series |
| Illuminated | No |
| Operation | Push Lock-Twist Release |
| Mounting | 22 mm |
| Operator Size (mm) | 29 mm |
| Contacts | 1NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| Comments | Screw |
| H x W x D | 1.20 " x 1.40 " x 2.45 " |
| Net Weight | 0.11 lbs |
| Gross Weight | 0.135 lbs |
Description
Switches, TW Series
Item #

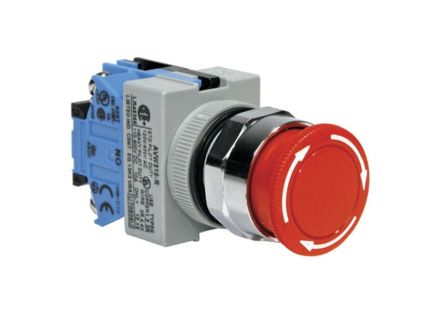

AVW301-R
PLTR PUSHBUTTON, RED, 29mm MUSH, 1NC
TW Series Information
- 22mm Mounting Size
- Maintained or Spring Return
- Standard Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Corrosion Resistant Chrome Bezel
- Fracture‑Resistant Nylon Body
