Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | AYLD32202DNUW |
| Manufacturer | IDEC |
| Product Series | TWND |
| Family Series | IDEC Switches, TWND Series |
| Illuminated | Yes |
| Operation | Push-Pull |
| Mounting | 30 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Hex |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | White |
| Terminal Type | Screw |
| Material | Polycarbonate |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.63 " x 1.58 " x 3.56 " |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description
Switches, TWND Series
Item #
AYLD32202DNUW

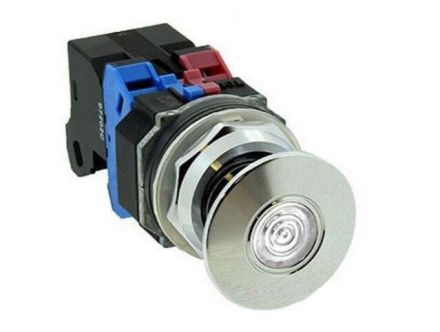

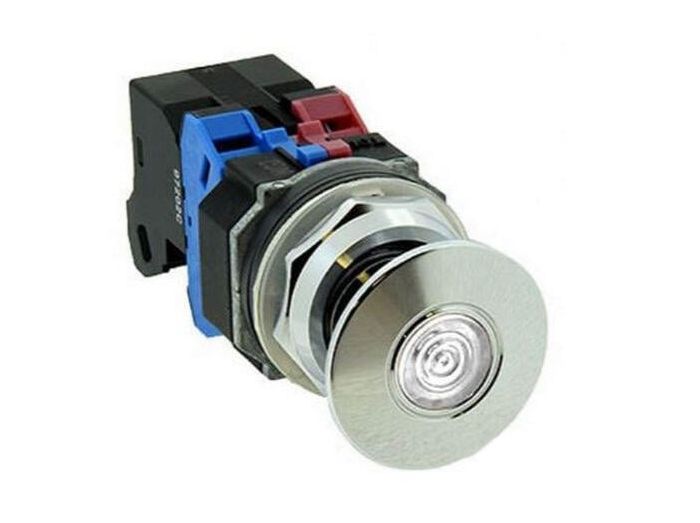

Pushbutton, 30mm E-stop Pull 24V
TWND Series Information
- Slow Break NC or NO Contact Operation
- 600 Rated Insulation Voltage and 10 Amp Rated Thermal Current
- Comply with UL508, CSA C22.2 Standards
Documents & Resources Links
Added to Cart
AYLD32202DNUW IDEC Switches, TWND Series, Pushbutton, 30mm E-stop Pull 24V
Series TWND
MFG #:
AYLD32202DNUW
Pushbutton, 30mm E-stop Pull 24V 2NC Wht
