Series

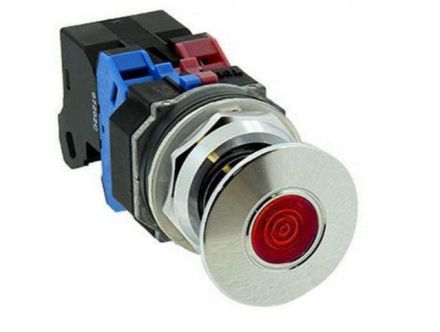

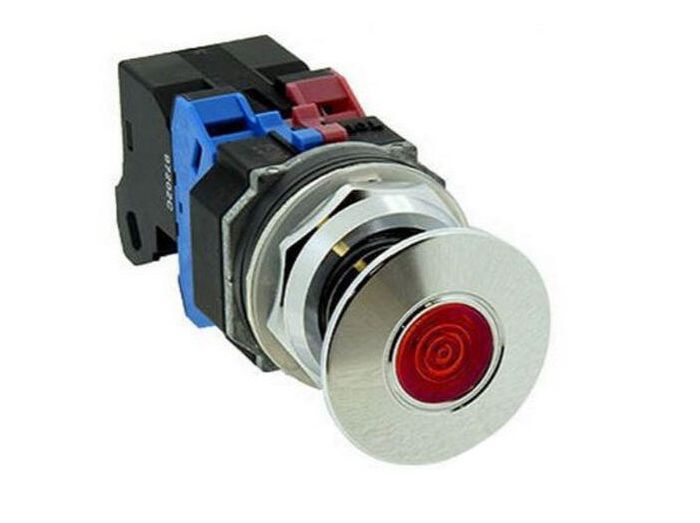

AYLD39904DN-R-24V IDEC Switches, TWTD Series
MFG #:
AYLD39904DN-R-24V
PUSH-PULL PUSHBUTTON, RED, 24V DIREC FULL VOLTAGE, 30mm MOUNTING, LED 4NC CONTACT BLOCKS, 40mm MUSHROOM
Specifications
| Manufacturer Part Number | AYLD39904DN-R-24V |
|---|---|
| Manufacturer | IDEC |
| Product Series | TWTD |
| Family Series | IDEC Switches, TWTD Series |
| Illuminated | Yes |
| Operation | Push-Pull |
| Operator Size (mm) | 40 mm |
| Contacts | 4NC |
| Max Voltage | 600 VAC, 600 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Approvals | CE, CSA, UL |
| H x W x D | 1.57 " x 1.57 " x 3.52 " |
| Net Weight | 0.3338 lbs |
| Gross Weight | 0.3338 lbs |
Description
Switches, TWTD Series
Item #
AYLD39904DN-R-24V
PUSH-PULL PUSHBUTTON, RED, 24V DIREC
TWTD Series Information
- 30mm Mounting Size
- Maintained or Spring Return
- Standard Screw Terminals
- NEMA 1,2,3,3R,3S,4,4X,5,12,13
- UL; CSA; CE Approvals
- Slow Make, Double Break Contacts
- Modular Construction for Maximum Flexibility
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Illuminated | Price | Action |
|---|---|---|---|---|---|---|---|
|
XN1E-LV404Q4MR | PLTR/Push-Pull Pushbutton, Red, 44mm Mush, 24V Direct, 30mm Mounting, LED, 4NC Contact Blocks | 30 mm | XN | Yes |
Price unavailable
|
