Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | B100M1C |
| Manufacturer | Eaton |
| Product Series | B100 |
| Family Series | Eaton Manual Motor Protectors, B100 Series |
| Current Rating | 26.8 A |
| Phase | 3 |
| Poles | 3 |
| Approvals | CSA, UL |
| H x W x D | 5.10 " x 6.00 " x 8.20 " |
| Net Weight | 1.9 lbs |
| Gross Weight | 1.95 lbs |
Description

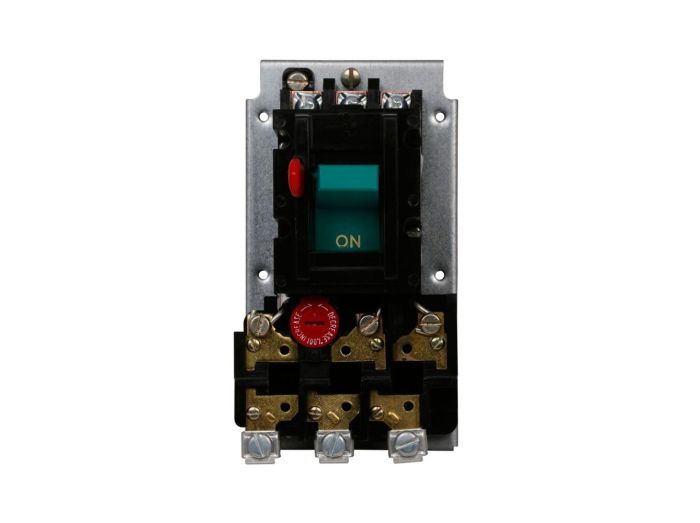

Manual Motor Protectors, B100 Series
Item #
B100M1C
OPEN SZ1 3P B-100 MAN STR
B100 Series Information
- Includes Three‑Pole Bimetallic Overload Relay
- Straight‑through Wiring
- Field Mounted Auxiliary Contacts
- Available in NEMA 1, 4, 7, 9 and 12 Enclosures with Toggle Operation (NEMA 1 Enclosure for Pushbutton Operator)
- Standard with a Lockout Device to Lock Motor in the OFF Position
There are two methods of operation for the B100 Manual Starter. It can be ordered with a toggle switch operator or a START/STOP pushbutton operator.
The B100 family of Manual Motor Starters provides manual control, as well as overload protection, to both single‑phase and three‑phase motors. The starter protects motors up to 38.9 amp single‑phase and 26.8 amp three‑phase with the appropriate heater selection.
