Specifications
| Manufacturer Part Number | B300BTZ13RBF |
|---|---|
| Manufacturer | Micron Industries |
| Product Series | ImperviTRAN |
| Family Series | Micron Industries Transformers, ImperviTRAN Series |
| Phase | 1 |
| Type | Control |
| VA Rating | 300 VA |
| Primary Voltage | 220 V, 230 V, 240 V, 440 V, 460 V, 480 V |
| Secondary Voltage | 110 V, 115 V, 120 V |
| Enclosed | No |
| Primary Fuseholder | Included |
| Secondary Fuseholder | Optional |
| Termination | Integrally Molded Terminal Blocks |
| Cover Included | Optional |
| Insulation Class | Class B |
| Approvals | UL |
| H x W x D | 4.85 " x 4.90 " x 5.30 " |
| Net Weight | 10.66 lbs |
| Gross Weight | 10.89 lbs |
Description

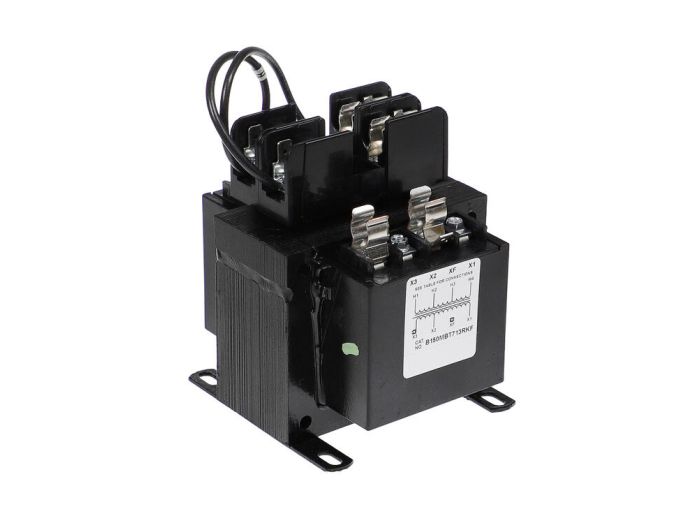

Transformers, ImperviTRAN Series
Item #
B300BTZ13RBF
ImperviTRAN 300 VA, 1P,
ImperviTRAN Series Information
- Epoxy Encapsulated Coil
- Corrosion‑Protected Windings and Solder
- Molded‑In Terminals and Terminal Barriers
- Pre‑Installed Mounting Holes
- Optional Secondary Fuse Clips Available
- Meets UL and cUL
