Specifications

Specifications

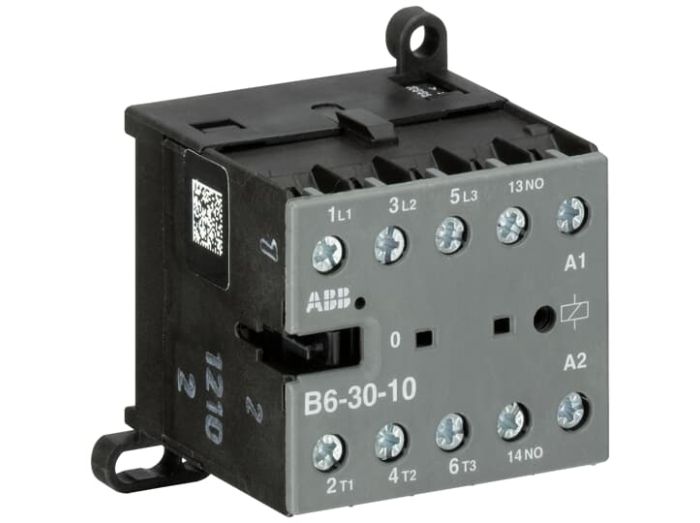

Manufacturer Part Number	B6-30-10-84
Manufacturer	ABB
Product Series	B
Family Series	ABB Contactors, B Series
Nominal Coil Voltage	120 VAC
Coil Voltage	110-120 VAC
Coil Type	Magnetic
Poles	3NO
Auxiliary Contact	1NO
Termination	Screw
General Purpose (AC1)	12 A
UL Motor Switching (AC3)	6.8 A
H x W x D	1.95 " x 2.10 " x 2.10 "
Net Weight	0.39 lbs
Gross Weight	0.39 lbs

Description

Contactors, B Series

Item #

B6-30-10-84

3P CONTR,1NO,110-120V/40-60HZ

B Series Information

Up to 5,5 kW ‑ 400 V AC‑3, 5 hp ‑ 480V, 20 A ‑ 400 V AC‑1 and 16 A ‑ General Use
3 Types of Connections: Screw, Soldering Pins, Flat Pins
Built‑in Mechanical Interlock Available
Integrated Protective Circuit with Diodes, Additional Surge Suppressor
Special Version with 1.4 W Coil Consumption for Direct Connection to PLC

Mini contactors (electrically controlled switches) which allow for no‑noise operation. Energy‑saving and flexible for use in many positions due to flatness. Can be used for a wide range of situations and applications.

Documents & Resources

Documents & Resources Links

Videos

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Part	Description	Series	Nominal Coil Voltage	Price
B7-30-10-84	The B7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings,	B	120 VAC	Price unavailable
CWC012-10-30V18	Mini Contactor, 3-P N/O, 120VAC Coil, Includes 1NO Aux Contact, AC1=22A, AC3=12A	CWC	120 VAC	Price unavailable
CWC016-10-30V18	Mini Contactor, 3-P N/O, 120VAC Coil, Includes 1NO Aux Contact, AC1=22A, AC3=16A	CWC	120 VAC	Price unavailable
