Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | BNH15LW |
| Manufacturer | IDEC |
| Product Series | BNH |
| Family Series | IDEC Terminal Blocks, BNH Series |
| Type | Standard Block |
| Number of Circuits | 1 |
| Spacing | 10.5 mm |
| Current Rating | 15 A |
| UL Voltage | 600 VAC |
| Wire Size Range | 14 AWG |
| CSA Voltage | 600 VAC |
| Color | Black |
| Wire Entry Position | Side |
| Mounting | DIN Rail |
| Sensor Block Indicator | None |
| Approvals | CSA, UL |
| Test Socket(s) | No |
| Partition | No |
| H x W x D | 1.28 " x 0.56 " x 1.50 " |
| Net Weight | 0.1 lbs |
| Gross Weight | 0.1 lbs |
Description
Terminal Blocks, BNH Series
Item #
BNH15LW
TERMINAL BLOCK
BNH Series Information
- Touch‑Down Terminals with Spring‑Loaded Captive Screws
- Jumpers Available up to 50A Model
- Fuse Block with or without Blown‑Fuse Indicator in Neon or LED
- Mounts on 35mm Standard DIN Rail
Documents & Resources Links
You May Also Be Interested In
Added to Cart

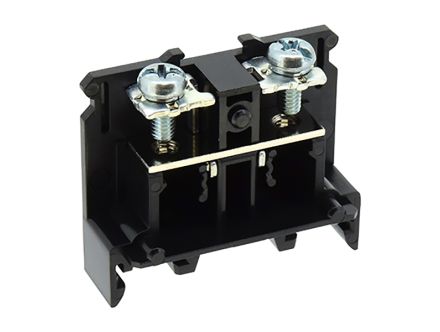

BNH15LW IDEC Terminal Blocks, BNH Series, TERMINAL BLOCK
