Series

Commander C200

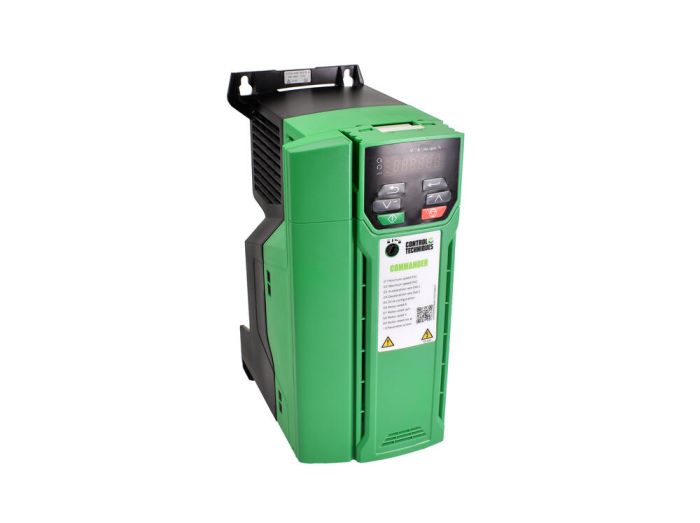

C200-04400170A10101AB100 Control Techniques Drives, Commander C200 Series

MFG #:

C200-04400170A10101AB100

Drive, AC, 10HP, 480V, 17.0A, CT, OP 480Vin 3PH 10HP 17.0A VT W/DB Trans 10.9in.Hx4.5in.Wx6.9in.D

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

Commander C200

C200-04400170A10101AB100 Control Techniques Drives, Commander C200 Series

Name: C200-04400170A10101AB100 Control Techniques Drives, Commander C200 Series
Brand: Control Techniques
SKU: C200-04400170A10101AB100-CONT
Price: 1136.59 USD
Availability: InStock

MFG #:

C200-04400170A10101AB100

Drive, AC, 10HP, 480V, 17.0A, CT, OP 480Vin 3PH 10HP 17.0A VT W/DB Trans 10.9in.Hx4.5in.Wx6.9in.D

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	C200-04400170A10101AB100
Manufacturer	Control Techniques
Product Series	Commander C200
Family Series	Control Techniques Drives, Commander C200 Series
Phase	3
HP (Constant Torque Rating)	10 hp
HP (Variable Torque Rating)	10 hp
Amps (Constant Torque Rating)	17 A
Amps (Variable Torque Rating)	17 A
Brake	DC Injection, Dynamic Braking
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Built In
Motor Control-Max Level	Open Loop Rotor Flux Control
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	550 Hz
Frame Size	4
Protection Rating	IP20
Dynamic Braking	Included
Height	10.9 "
Width	4.5 "
Depth	6.9 "
H x W x D	7.00 " x 5.00 " x 11.00 "
Net Weight	9 lbs
Gross Weight	8.5 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Mounting	Series	Price
DVTP0009E	dV E-Series, 208-600V, 9A, 2-4kHz, Open Panel	Surface	dv E	Price unavailable
DVTP0022E	dV E-Series, 208-600V, 22A, 2-4kHz, Open Panel	Surface	dv E	Price unavailable
RLW-002103	Reactor, 21A, 1.100mH, 3Ph, Open	Surface	RLW	Price unavailable
RLW-002105	Reactor, 21A, 1.800mH, 3Ph, Open	Surface	RLW	Price unavailable
RLW-07P603	Reactor, 7.6A, 3.000mH, 3Ph, Open	Surface	RLW	Price unavailable
RLW-07P605	Reactor, 7.6A, 4.800mH, 3Ph, Open	Surface	RLW	Price unavailable
SI-ETHERCAT	EtherCAT System Integration Module			Price unavailable
SI-ETHERNET	Ethernet/IP and Modbus TCP/IP System Integration module 82400000017900			Price unavailable
SI-PROFINET-V2	Profinet-RT System Integration Module (M200-M700)			Price unavailable
