Series

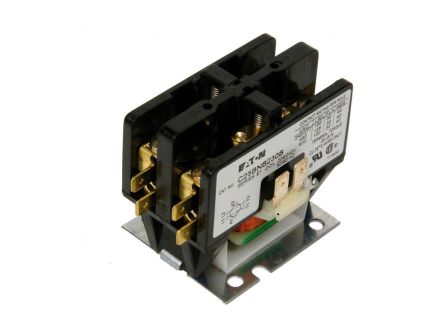

C25BNB230A Eaton Contactors, C25 Series
MFG #:
C25BNB230A
Eaton definite purpose contactor,Mounting plate,Quick, 25A,Quick connect side-by-side,110-120 Vac,50/60 Hz,Open with metal mounting plate,Compact, 25A, Contactor, Two-pole, 50 pc./pkg., F1, Binding head screw, Non-reversing
Specifications
| Manufacturer Part Number | C25BNB230A |
|---|---|
| Manufacturer | Eaton |
| Product Series | C25 |
| Family Series | Eaton Contactors, C25 Series |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 110-120 VAC |
| Inductive Current Rating | 30 A |
| Poles | 2NO |
| Termination | Quick Connect, Screw |
| Enclosure | Open |
| Resistive Rating | 40 A |
| Approvals | CSA, UR |
| H x W x D | 2.31 " x 2.63 " x 3.50 " |
| Net Weight | 0.6 lbs |
| Gross Weight | 0.6 lbs |
Description
Contactors, C25 Series
Item #
C25BNB230A
COMPCT 2P 30A CONT SCR TRM 4QC 120VCOIL
C25 Series Information
- 24~480 VAC Coils
- Up to 7‑1/2 HP @ 230V
- Up to 5.5 KW @ 230V
- UL; CSA Certified; IEC
- Up to 50 Amps
- Quick Connect Terminals
- Open Enclosure
- Double Break Contacts
- Class B Magnetic Coil
