C25BNB230T
Eaton Contactors, C25 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

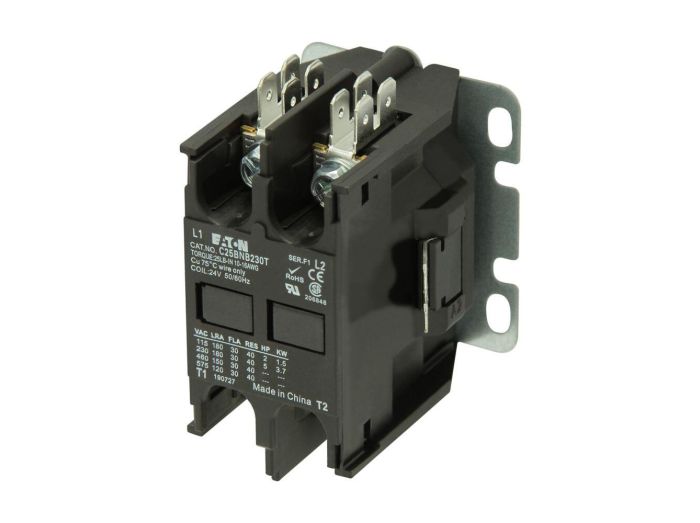

C25BNB230T Eaton Contactors, C25 Series
COMPCT 2P 30A CONT SCR TERM 4QC 24VCOIL
MFG Item Number
C25BNB230T
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, C25 Series
Item #
C25BNB230T
COMPCT 2P 30A CONT SCR TERM 4QC 24VCOIL
C25 Series Information
- 24~480 VAC Coils
- Up to 7‑1/2 HP @ 230V
- Up to 5.5 KW @ 230V
- UL; CSA Certified; IEC
- Up to 50 Amps
- Quick Connect Terminals
- Open Enclosure
- Double Break Contacts
- Class B Magnetic Coil
Specifications
| Manufacturer Part Number | C25BNB230T |
|---|---|
| Manufacturer | Eaton |
| Product Series | C25 |
| Family Series | Eaton Contactors, C25 Series |
| Description | Eaton definite purpose contactor, Quick, 30A, 277 Vac, 60 Hz, Open with metal mounting plate, Compact, two-pole, 30A, Contactor, Two-pole, Power terminals: Binding head screw and quick con, Non-reversing |
| Nominal Coil Voltage | 24 VAC |
| Coil Voltage | 24 VAC |
| Inductive Current Rating | 30 A |
| Poles | 2NO |
| Termination | Quick Connect, Screw |
| Enclosure | Open |
| Resistive Rating | 40 A |
| Approvals | CSA, UR |
| H x W x D | 2.31 " x 2.63 " x 3.50 " |
| Net Weight | 0.6 lbs |
| Gross Weight | 0.6 lbs |
