C306GN3B Eaton Overload Relays

MFG #:

C306GN3B

Eaton Freedom NEMA overload relay, 60 - 79A, Three-pole, NEMA Size 1, 2, IEC Size G-K , Panel Mounted or Starter Replacement mounting

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

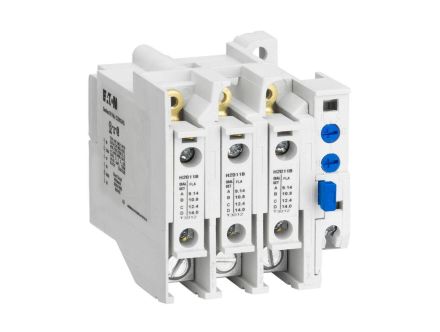

C306GN3B Eaton Overload Relays

Name: C306GN3B Eaton Overload Relays
Brand: Eaton
SKU: C306GN3B-CHGP
Price: 609.20 USD
Availability: BackOrder

MFG #:

C306GN3B

Eaton Freedom NEMA overload relay, 60 - 79A, Three-pole, NEMA Size 1, 2, IEC Size G-K , Panel Mounted or Starter Replacement mounting

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Country of Origin	Dominican Republic
Manufacturer Part Number	C306GN3B
Manufacturer	Eaton
Family Series	Eaton Overload Relays
Current Rating	60-79 A
Poles	3
Approvals	CSA, UL
H x W x D	4.50 " x 4.50 " x 5.00 "
Net Weight	0.9 lbs
Gross Weight	0.94 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Series	Current Rating	Price	Action
	C306GT3B	Eaton Freedom NEMA overload relay, 60 - 79A, Three-pole, NEMA Size 1, 2, IEC Size G-K, Panel/DIN Rail Mounted mounting	Eaton Overload Relays	60-79 A	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	Type	Price
H2001B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 0.254A 0.306A 0.359A 0.411A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2003B-3	Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 0.56A 0.676A 0.791A 0.907A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Trip Heater Pack	Price unavailable
H2004B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 0.814A/0.983A/1.15A/1.32A, Dial positions A B C D respectively, overload relay 32 or 75 A	Eaton Overload Relays	Heater Coil	Price unavailable
H2005B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 1.2A 1.45A 1.71A 1.96A Dial positions A B C D respectively, overload relay 32 or 75A PK/3	Eaton Overload Relays	Heater Coil	Price unavailable
H2006B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 1.79A 2.16A 2.53A 2.9A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2007B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 2.15A 2.6A 3.04A 3.49A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2008B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 3.23A 3.9A 4.56A 5.23A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2009B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 4.55A 5.5A 6.45A 7.4A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2010B-3	Eaton Freedom NEMA heater coil, Standard Trip, Class 20, NEMA, IEC, full load range 6.75A 8.17A 9.58A 11A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2011B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 9.14A 10.8A 12.4A 14A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2012B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 14A 16.9A 19.9A 22.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2013B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 18.7A 22.7A 26.7A 30.7A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2014B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 23.5A 28.5A 33.5A 38.5A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2015B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 29A 34A 39.1A 44.1A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2016B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 39.6A 45.5A 51.5A 57.4A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2017B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Standard Trip, Class 20, NEMA, IEC, full load range 53.9A 60.9A 67.9A 74.9A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2105B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 1.28A 1.55A 1.83A 2.1A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2106B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 1.92A 2.33A 2.74A 3.15A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Trip Heater Pack	Price unavailable
H2107B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 2.3A 2.79A 3.28A 3.77A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2108B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 3.38A 4.1A 4.82A 5.54A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2109B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 4.96A 6.03A 7.09A 8.16A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2110B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 7.07A 8.58A 10.1A 11.6A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2111B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 9.6A 11.2A 12.8A 14.4A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2112B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 14.4A 17.5A 20.7A 23.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2113B-3	Eaton Freedom NEMA heater coil, Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 18.7A 21.8A 25A 28.1A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Heater Coil	Price unavailable
H2114B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 23.5A 27.3A 31A 34.8A Dial positions A B C D respectively, overload relay 32 or 75A	Eaton Overload Relays	Trip Heater Pack	Price unavailable
H2116B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 36.6A 42.3A 48.1A 53.8A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays	Trip Heater Pack	Price unavailable
H2117B-3	Freedom/Definite Purpose Heater Pack, Fast Trip, Class 10, NEMA, IEC, full load range 53.8A 60.8A 67.9A 74.9A Dial positions A B C D respectively, overload relay 75A	Eaton Overload Relays	Trip Heater Pack	Price unavailable
