CE15BN3AB
Eaton Contactors, Freedom Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

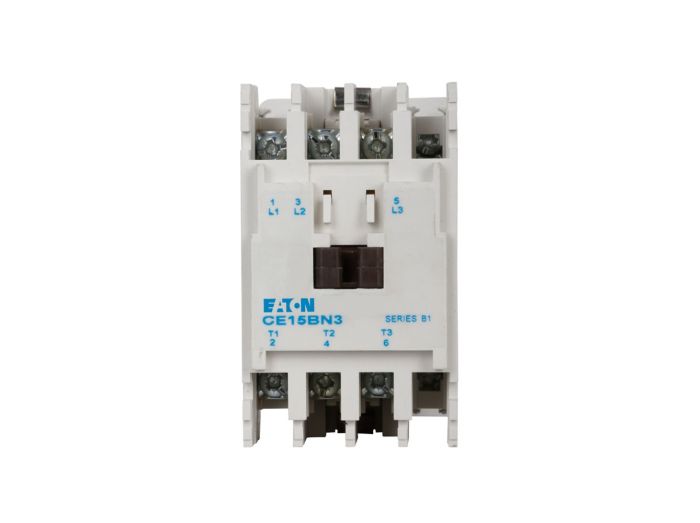

CE15BN3AB Eaton Contactors, Freedom Series
Cont FREEDOM OPEN - FOR REPLACEMENT ONLY
MFG Item Number
CE15BN3AB
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, Freedom Series
Item #
CE15BN3AB
Cont FREEDOM OPEN - FOR REPLACEMENT ONLY
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
Specifications
| Manufacturer Part Number | CE15BN3AB |
|---|---|
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Description | Eaton XT IEC contactor, Contactor only, 10A, 110-120 Vac, 50-60 Hz, 10A, Frame B, 45 mm, 50-60 Hz, 0.5 hp, Steel mounting plate, Three-pole, Non-reversing, No overload relay, Freedom, Contactor |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | B |
| Auxiliary Contact | None |
| Termination | Box Lug |
| Overload Relays | C306, C316 |
| General Purpose (AC1) | 20 A |
| UL Motor Switching (AC3) | 10 A |
| Approvals | CSA, UL |
| H x W x D | 3.80 " x 2.70 " x 4.10 " |
| Net Weight | 1.3 lbs |
| Gross Weight | 1.3 lbs |
