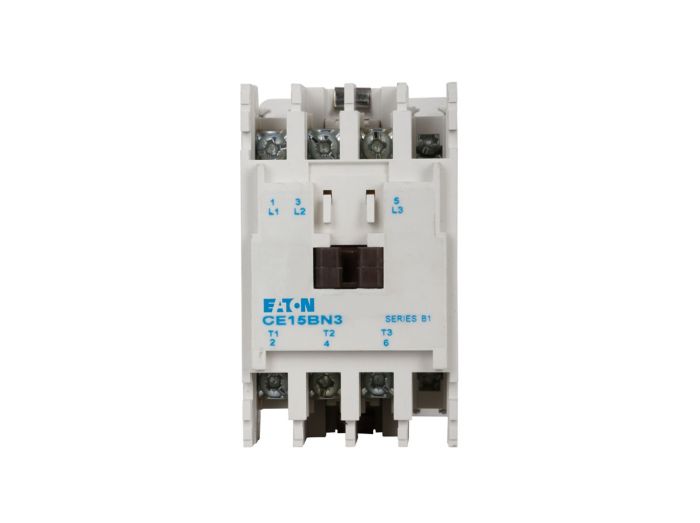

CE15BNS3AB Eaton Contactors, Freedom Series

• 12~120VDC; 24~600VAC Coils
• Up to 450 HP @ 240V
• Up to 900 HP @ 480V
• UL; CSA Approved
• Up to 1350 Amps

Freedom Series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion. Non‑reversing contactors are most commonly used to switch motor loads in applications where running over current protection is either not required or is provided separately.

• 2, 3, 4, or 5 Poles
• IP20 Finger Protection Shields Available
• Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
• Adequate for most general duty control applications.
