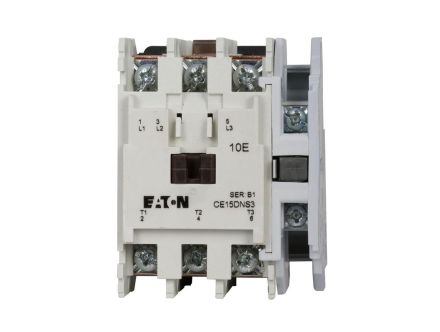

CE15DNS3AB Eaton Contactors, Freedom Series
MFG #:
CE15DNS3AB
Eaton XT IEC contactor, 18A, 110-120 Vac, 50-60 Hz, 1NO, 18A, Frame D, 55 mm, 50-60 Hz, 1 hp, Side, Three-pole, Non-reversing, No overload relay, Freedom, Contactor
Specifications
| Manufacturer Part Number | CE15DNS3AB |
|---|---|
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | D |
| Auxiliary Contact | 1NO |
| Termination | Box Lug |
| Overload Relays | C306, C316 |
| General Purpose (AC1) | 32 A |
| UL Motor Switching (AC3) | 18 A |
| Approvals | CSA, UL |
| H x W x D | 4.50 " x 3.50 " x 4.70 " |
| Net Weight | 1.4 lbs |
| Gross Weight | 1.4 lbs |
Description
Contactors, Freedom Series
Item #
CE15DNS3AB
IEC OPEN 3P CONT SZ D 120V - Repl ONLY
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
