Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

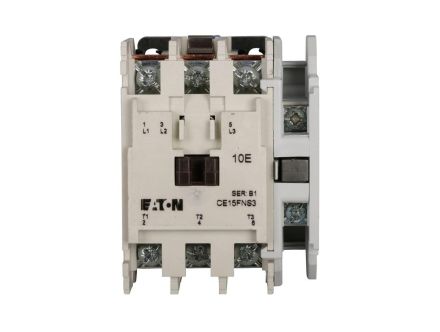

CE15FNS3AB Eaton Contactors, Freedom Series
MFG #:
CE15FNS3AB
Eaton Freedom series IEC contactor, F-frame, Non-reversing, No overload relay, 32A, Three-pole, 2 hp max, Steel mounting plate, 1NO Side mounted auxiliary contact, 110/120 VAC, 50/60 Hz
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | CE15FNS3AB |
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | F |
| Auxiliary Contact | 1NO |
| Termination | Box Lug |
| Overload Relays | C306, C316 |
| General Purpose (AC1) | 32 A |
| UL Motor Switching (AC3) | 32 A |
| Approvals | CSA, UL |
| H x W x D | 3.50 " x 4.50 " x 4.70 " |
| Net Weight | 1.4 lbs |
| Gross Weight | 1.4 lbs |
Description
Contactors, Freedom Series
Item #
CE15FNS3AB
IEC OPEN 3P CONT SZ F 120V - Repl ONLY
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
XTCE032C10A | Eaton XT IEC contactor, 32A, 110 Vac 50 Hz, 120 Vac 60 Hz, 1NO, 32A, Frame C, 45 mm, 50-60 Hz, 3, 5, 5/ 10, 10, 20, 25 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole,, Screw terminals, FVNR | XT | AC Non-Reversing IEC |
Price unavailable
|
|
|
CE15FN3AB | Eaton XT IEC contactor, 32A, 110-120 Vac, 50-60 Hz, 32A, Frame F, 90 mm, 50-60 Hz, 2 hp, Steel mounting plate, Three-pole, Non-reversing, No overload relay, Freedom, Contactor | Freedom | AC Non-Reversing IEC |
Price unavailable
|
