CE15JNS3AB
Eaton Contactors, Freedom Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

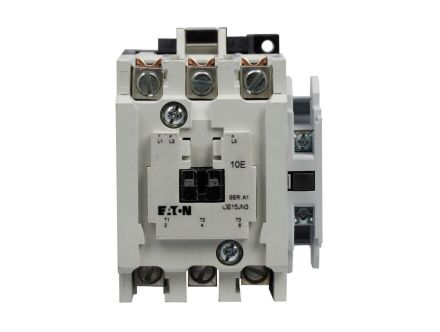

CE15JNS3AB Eaton Contactors, Freedom Series
IEC OPEN 3P CONT SZ J 120V - Repl ONLY
MFG Item Number
CE15JNS3AB
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, Freedom Series
Item #
CE15JNS3AB
IEC OPEN 3P CONT SZ J 120V - Repl ONLY
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | CE15JNS3AB |
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Description | Eaton XT IEC contactor, 60A, 110-120 Vac, 50-60 Hz, 1NO, 60A, Frame J, 50-60 Hz, 5 hp, Side, 3-pole, Non-reversing, No overload relay, Freedom, Contactor |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | J |
| Auxiliary Contact | 1NO |
| Termination | Box Lug |
| Overload Relays | C306, C316 |
| General Purpose (AC1) | 75 A |
| UL Motor Switching (AC3) | 60 A |
| Approvals | CSA, UL |
| H x W x D | 4.50 " x 3.50 " x 4.70 " |
| Net Weight | 2.8 lbs |
| Gross Weight | 2.8 lbs |
