CECP4115T
Baldor-ABB Motors Motors, CP Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

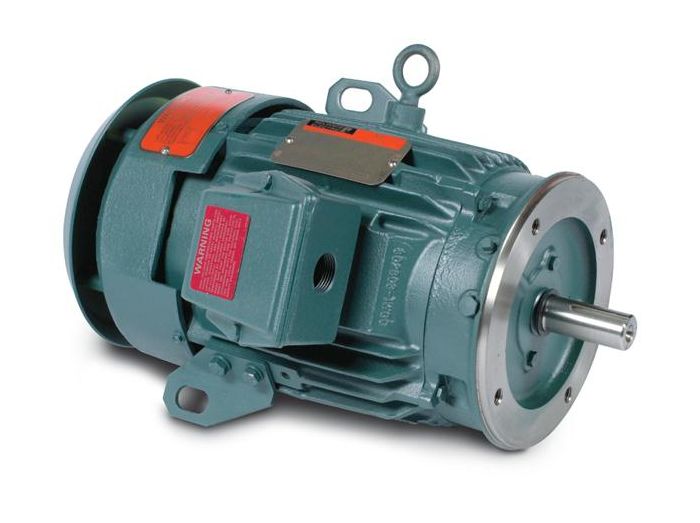

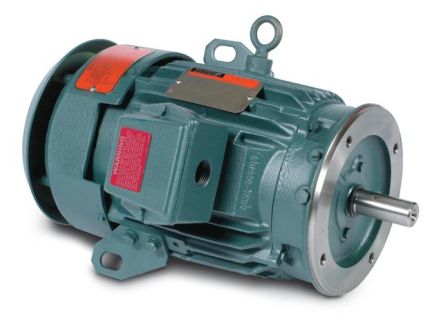

CECP4115T Baldor-ABB Motors Motors, CP Series
50HP, 1775RPM, 3PH, 60HZ, 324TC, 1272M
MFG Item Number
CECP4115T
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, CP Series
Item #
CECP4115T
50HP, 1775RPM, 3PH, 60HZ, 324TC, 1272M
CP Series Information
- Processing Industry Applications Requiring Protection against Corrosion Caused By Severe Environmental Operating Conditions
- Oversized Rotatable Cast Iron Conduit Box, Cast Iron Frames, Corrosion Resistant Hardware
- Corrosion Resistant Epoxy Finish
- Regreasable Ball or Roller Bearings
- 1.15 Service Factor
- Class F Insulation
Specifications
| Manufacturer Part Number | CECP4115T |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | CP |
| Family Series | Baldor-ABB Motors Motors, CP Series |
| Description | MOTOR, 50HP, 1775RPM, 3PH, 60HZ, 326TC, 1266M, TEFC |
| Type | High Efficiency, Severe Duty |
| Horsepower | 50 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| NEMA Frame | 326TC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 57 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Re-Greasable |
| Length | 30.16 " |
| Net Weight | 656 lbs |
| Gross Weight | 656 lbs |
