Specifications
| Manufacturer Part Number | CEM2333T |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | M |
| Family Series | Baldor-ABB Motors Motors, M Series |
| Type | General Purpose |
| Horsepower | 15 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Phase | 3 |
| NEMA Frame | 254TC |
| AC Voltage | 230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 18.5 A |
| Inverter Duty | No |
| Composition | Cast Iron |
| Bearing Type | Ball |
| Overload Protection | None |
| Length | 23.78 " |
| H x W x D | 0.50 " x 0.50 " x 1.00 " |
| Net Weight | 269 lbs |
| Gross Weight | 269 lbs |
Description

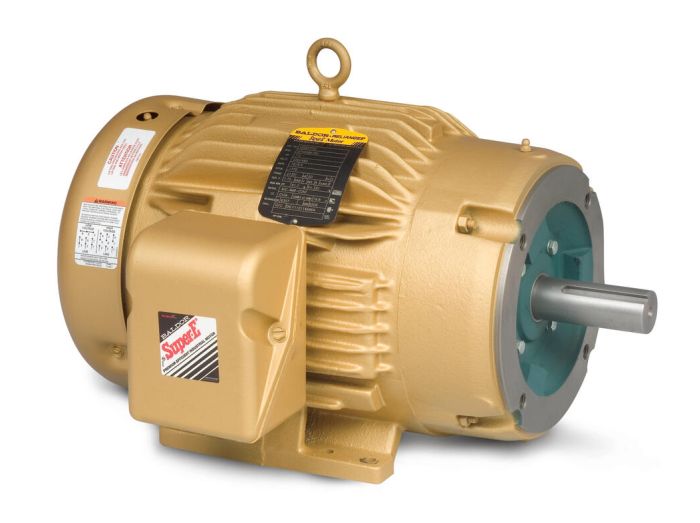

Motors, M Series
Item #
CEM2333T
15HP, 1765RPM, 3PH, 60HZ, 254TC, 0944M
M Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
171587.60 | Motor, 15HP, 208-230/460V, 1765RPM TEFC Wattsaver | 208 VAC, 240 VAC, 480 VAC | C-Face Footed | Three Phase C Face |
Quote Required
|
