CEWDM23934T
Baldor-ABB Motors Motors, WDM Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

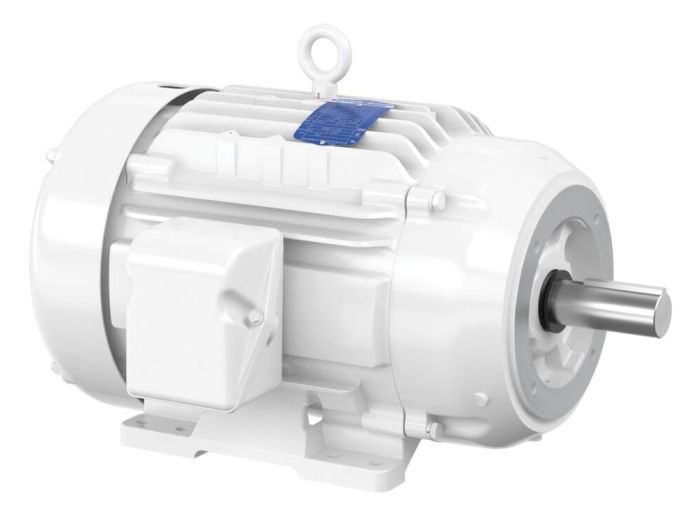

CEWDM23934T Baldor-ABB Motors Motors, WDM Series
20HP, 1765RPM, 3PH, 60HZ, 256TC, 3952M
MFG Item Number
CEWDM23934T
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, WDM Series
Item #
CEWDM23934T
20HP, 1765RPM, 3PH, 60HZ, 256TC, 3952M
WDM Series Information
Specifications
| Manufacturer Part Number | CEWDM23934T |
|---|---|
| Manufacturer | Baldor-ABB Motors |
| Product Series | WDM |
| Family Series | Baldor-ABB Motors Motors, WDM Series |
| Description | 20HP, 1765RPM, 3PH, 60HZ, 256TC, 3952M, TEFC |
| Type | High Efficiency, Washdown |
| Horsepower | 20 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| NEMA Frame | 256TC |
| AC Voltage | 208-230 VAC, 460 VAC |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 24 A |
| Service Factor | 1.15 |
| Inverter Duty | No |
| Composition | Stainless Steel |
| Bearing Type | Double Sealed |
| Length | 23.57 " |
| H x W x D | 19.00 " x 23.75 " x 31.00 " |
| Net Weight | 283 lbs |
| Gross Weight | 283 lbs |
