Series

A1000

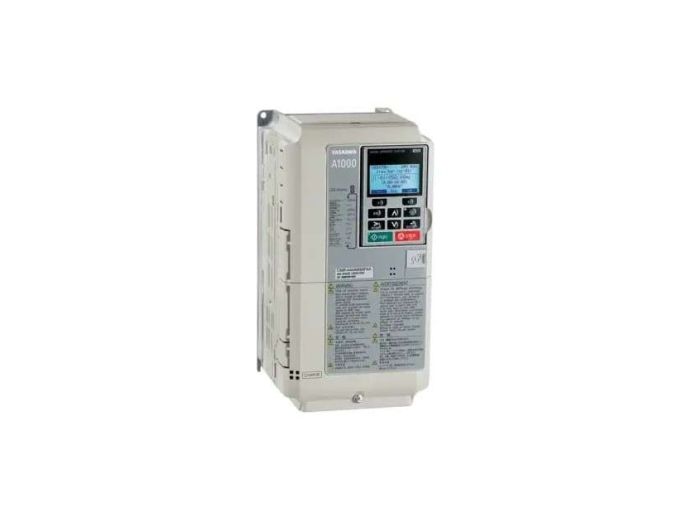

CIMR-AU2A0069FAA Yaskawa Drives, A1000 Series

MFG #:

CIMR-AU2A0069FAA

Drive, AC, 20HP, 240V, 3PH, 60A, CT, 25HP, 69A, VT, 15.75in.Hx8.66in.Wx7.76in.D

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

A1000

CIMR-AU2A0069FAA Yaskawa Drives, A1000 Series

Name: CIMR-AU2A0069FAA Yaskawa Drives, A1000 Series
Brand: Yaskawa
SKU: CIMR-AU2A0069FAA-YASK

MFG #:

CIMR-AU2A0069FAA

Drive, AC, 20HP, 240V, 3PH, 60A, CT, 25HP, 69A, VT, 15.75in.Hx8.66in.Wx7.76in.D

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	CIMR-AU2A0069FAA
Manufacturer	Yaskawa
Product Series	A1000
Family Series	Yaskawa Drives, A1000 Series
Phase	3
HP (Constant Torque Rating)	20 hp
HP (Variable Torque Rating)	25 hp
Amps (Constant Torque Rating)	60 A
Amps (Variable Torque Rating)	69 A
Brake	DC Injection, Dynamic Braking Transistor Included
Closed Loop	Optional
AC Line Regenerative	No
Operator Controls	Keypad Included
NEMA Rating	NEMA 1
Motor Control-Max Level	Closed Loop Vector for Permanent Magnet
Nominal Input Voltage	208 VAC, 240 VAC
AC Voltage	200-240 VAC
Frequency	400 Hz
Protection Rating	IP20
Dynamic Braking	Included
Height	15.75 "
Width	8.66 "
Depth	7.76 "
H x W x D	14.75 " x 14.50 " x 21.85 "
Net Weight	24.605 lbs
Gross Weight	24.605 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	SKU	Price
AI-A3	Analog Input Expansion Kit, Adds 3 Analog Inputs, For A1000, FP605 & GA800 Drives	Yaskawa Drives	AI-A3-YASK	Price unavailable
AO-A3	Analog Output Expansion Kit, Adds 2 Analog Outputs, For A1000, FP605 & GA800 Drives	Yaskawa Drives	AO-A3-YASK	Price unavailable
DI-101	120V Digital Input Conversion Kit Converts Existing Inputs, For A1000, P1000 & GA800 Drives	Yaskawa Drives	DI-101-YASK	Price unavailable
EZZ020642A	V1000/J1000 LED/LCD KEYPAD INST KIT	Yaskawa Drives	EZZ020642A-YASK	Price unavailable
EZZ020642B	V1000/J1000 LED/LCD KEYPAD INST KIT	Yaskawa Drives	EZZ020642B-YASK	Price unavailable
JVOP-182	Keypad, LED Digital, Remote, NEMA 1 For A1000, J1000 & P1000 Drives	Yaskawa Drives	JVOP-182-YASK	Price unavailable
PG-B3	Encoder Feedback Option Kit, Incremental, Open Collector, 12VDC Input A1000 & GA800 Drives	Yaskawa Drives	PG-B3-YASK	Price unavailable
PG-X3	Encoder Feedback Option Kit, Incremental, Line Driver, 5 Or 12VDC Input, A1000 & GA800 Drives	Yaskawa Drives	PG-X3-YASK	Price unavailable
SI-EM3	Modbus TCP/IP Communication Option Kit, For A1000, P1000, FP605, GA500 (reqs JOHB-GA50) & GA800 Drives	Yaskawa Drives	SI-EM3-YASK	Price unavailable
SI-EN3	EtherNet IP Communication Option Kit For A1000, P1000, FP605, GA500 (reqs JOHB-GA50) & GA800 Drives	Yaskawa Drives	SI-EN3-YASK	Price unavailable
SI-EP3	PROFINET Communication Option Kit For A1000, P1000, FP605, GA500 (reqs JOHB-GA50) & GA800 Drives	Yaskawa Drives	SI-EP3-YASK	Price unavailable
SI-P3	PROFIBUS-DP Communication Option Kit For A1000, P1000, FP605, GA500 (reqs JOHB-GA50) & GA800 Drives	Yaskawa Drives	SI-P3-YASK	Price unavailable
UWR00468-2	V1000/J1000 PC COMM CABLE 6FT	Yaskawa Drives	UWR00468-2-YASK	Price unavailable
UWR0051	REMOTE JVOP-182/JVOP-180 CABLE 1M	Yaskawa Drives	UWR0051-YASK	Price unavailable
UWR0052	REMOTE JVOP-182/JVOP-180 CABLE 3M	Yaskawa Drives	UWR0052-YASK	Price unavailable
