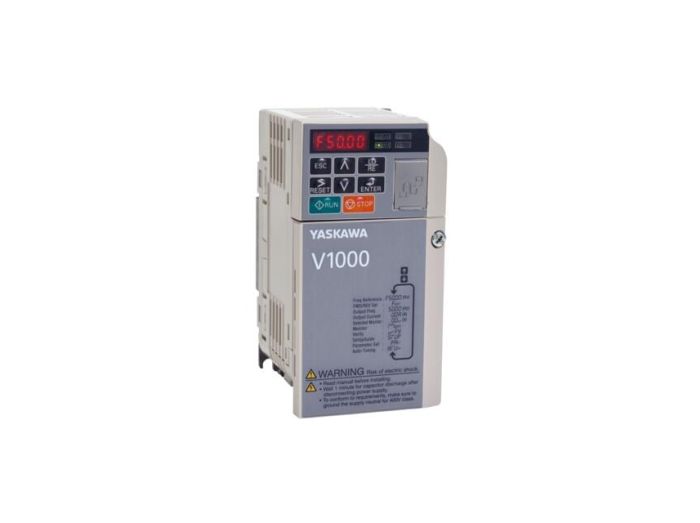

CIMR-VU2A0010GAA
Yaskawa Drives, V1000-4X Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
CIMR-VU2A0010GAA Yaskawa Drives, V1000-4X Series
Drive, AC, 2HP, 240V, 3PH, 8A, CT
MFG Item Number
CIMR-VU2A0010GAA
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Drives, V1000-4X Series
Item #
CIMR-VU2A0010GAA
Drive, AC, 2HP, 240V, 3PH, 8A, CT
V1000-4X Series Information
The V1000‑4X is a version of the standard V1000 in an integral enclosure that meets NEMA type 4X/12 indoor use requirements, UL type 4X/12 standards, and the IP66 rating of IEC 529. This enclosure provides the protection required in tough washdown or dust‑tight environments, common in Food and Beverage Processing, Packaging, Metal Machining, Woodworking, Pumping, Refrigeration, and Printing. The enclosure is coated to protect against the harmful effects of sanitizing chemicals commonly used in food industries
Specifications
| Manufacturer Part Number | CIMR-VU2A0010GAA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | V1000-4X |
| Family Series | Yaskawa Drives, V1000-4X Series |
| Description | Drive, AC, 2HP, 240V, 3PH, 8A, CT 3HP, 9.6A, VT, N4X 10.04in.Hx7.36in.Wx9.25in.D |
| Phase | 1 |
| HP (Constant Torque Rating) | 2 hp |
| HP (Variable Torque Rating) | 3 hp |
| Amps (Constant Torque Rating) | 8 A |
| Amps (Variable Torque Rating) | 9.6 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 208 VAC, 240 VAC |
| AC Voltage | 200-240 VAC |
| Frequency | 400 Hz |
| Dynamic Braking | Included |
| Height | 10.04 " |
| Width | 7.36 " |
| Depth | 9.25 " |
| H x W x D | 9.25 " x 7.36 " x 10.04 " |
| Net Weight | 21 lbs |
| Gross Weight | 17 lbs |
