Yaskawa
Series
V1000
CIMR-VU2A0020FAA Yaskawa Drives, V1000 Series
MFG #:
CIMR-VU2A0020FAA
Drive, AC, 5HP, 240V, 3PH, 17.5A, CT, N1 5HP, 19.6A, VT 6.02in.Hx5.51in.Wx5.63in.D
View Full Specs

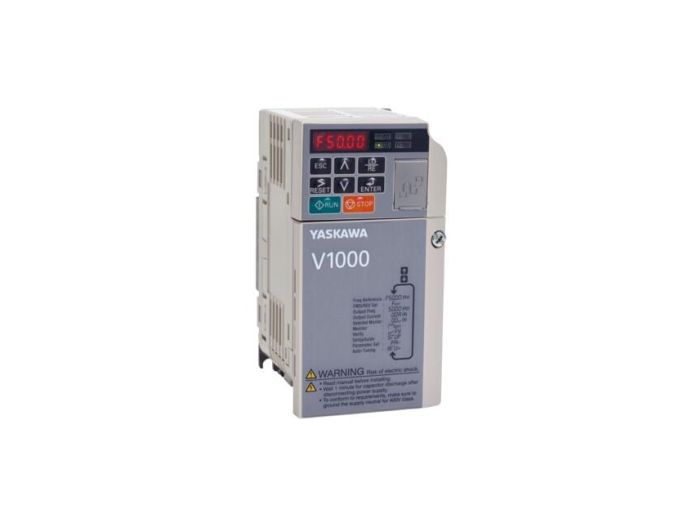

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Yaskawa
Series
V1000

CIMR-VU2A0020FAA Yaskawa Drives, V1000 Series

MFG #:
CIMR-VU2A0020FAA
Drive, AC, 5HP, 240V, 3PH, 17.5A, CT, N1 5HP, 19.6A, VT 6.02in.Hx5.51in.Wx5.63in.D
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number CIMR-VU2A0020FAA
Manufacturer Yaskawa
Product Series V1000
Family Series Yaskawa Drives, V1000 Series
Phase 3
HP (Constant Torque Rating) 5 hp
HP (Variable Torque Rating) 5 hp
Amps (Constant Torque Rating) 17.5 A
Amps (Variable Torque Rating) 19.6 A
Brake DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
NEMA Rating NEMA 1
Motor Control-Max Level Open Loop Vector (Sensorless Vector)
Mounting Panel
Nominal Input Voltage 208 VAC, 240 VAC
AC Voltage 200-240 VAC
Frequency 400 Hz
Dynamic Braking Included
Height 6.02 "
Width 5.51 "
Depth 5.63 "
H x W x D 5.63 " x 5.51 " x 6.02 "
Net Weight 7 lbs
Gross Weight 7 lbs
