Specifications
| Manufacturer Part Number | CIMR-VU2A0040FAA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | V1000 |
| Family Series | Yaskawa Drives, V1000 Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 10 hp |
| HP (Variable Torque Rating) | 10 hp |
| Amps (Constant Torque Rating) | 33 A |
| Amps (Variable Torque Rating) | 40 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 208 VAC, 240 VAC |
| AC Voltage | 200-240 VAC |
| Frequency | 400 Hz |
| Dynamic Braking | Included |
| Height | 10 " |
| Width | 5.51 " |
| Depth | 5.51 " |
| H x W x D | 5.51 " x 5.51 " x 10.00 " |
| Net Weight | 9.5 lbs |
| Gross Weight | 10.23 lbs |
Description

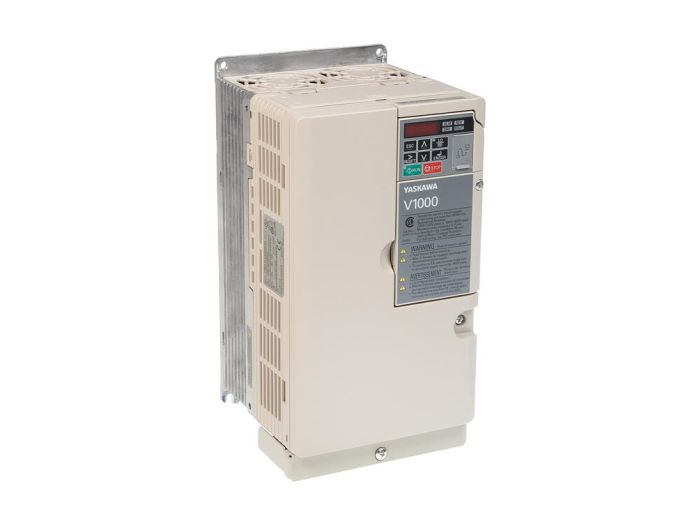

Drives, V1000 Series
Item #
CIMR-VU2A0040FAA
Drive, AC, 10HP, 240V, 3PH, 33A, CT,
V1000 Series Information
- Compact Drive
- Open Loop Vector
- 1/4~25 HP
- 240V or 480V, 1PH & 3PH
- NEMA 1
