CIMR-VU2A0056FAA Yaskawa Drives, V1000 Series
Drive, AC, 15HP, 240V, 3PH, 47A, CT,
MFG Item Number
CIMR-VU2A0056FAA
Yaskawa

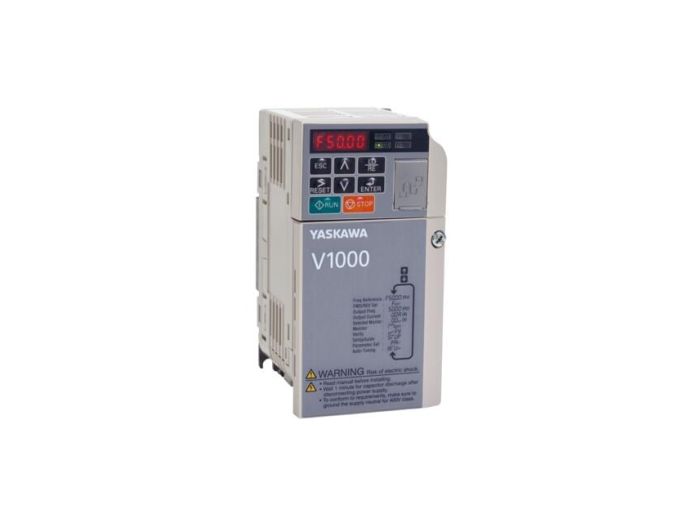

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

CIMR-VU2A0056FAA Yaskawa Drives, V1000 Series

Drive, AC, 15HP, 240V, 3PH, 47A, CT,
MFG Item Number
CIMR-VU2A0056FAA
Yaskawa
Series
V1000
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Drives, V1000 Series
Item #
CIMR-VU2A0056FAA
Drive, AC, 15HP, 240V, 3PH, 47A, CT,

V1000 Series Information

  • Compact Drive
  • Open Loop Vector
  • 1/4~25 HP
  • 240V or 480V, 1PH & 3PH
  • NEMA 1
The V1000 is a world‑class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality.

Links

Videos

Specifications

Specifications
Manufacturer Part Number CIMR-VU2A0056FAA
Manufacturer Yaskawa
Product Series V1000
Family Series Yaskawa Drives, V1000 Series
Description Drive, AC, 15HP, 240V, 3PH, 47A, CT, N1 20HP, 56A, VT 11.42in.Hx7.09in.Wx6.42in.D
Phase 3
HP (Constant Torque Rating) 15 hp
HP (Variable Torque Rating) 20 hp
Amps (Constant Torque Rating) 47 A
Amps (Variable Torque Rating) 56 A
Brake DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
NEMA Rating NEMA 1
Motor Control-Max Level Open Loop Vector (Sensorless Vector)
Mounting Panel
Nominal Input Voltage 208 VAC, 240 VAC
AC Voltage 200-240 VAC
Frequency 400 Hz
Dynamic Braking Included
Height 11.42 "
Width 7.09 "
Depth 6.42 "
Net Weight 13.6 lbs
Gross Weight 14.3 lbs
