Specifications
| Manufacturer Part Number | CIMR-VU4A0038GAA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | V1000-4X |
| Family Series | Yaskawa Drives, V1000-4X Series |
| Phase | 3 |
| HP (Constant Torque Rating) | 20 hp |
| HP (Variable Torque Rating) | 25 hp |
| Amps (Constant Torque Rating) | 31 A |
| Amps (Variable Torque Rating) | 25 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 4X |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 380 VAC, 415 VAC, 480 VAC |
| AC Voltage | 380-480 VAC |
| Frequency | 400 Hz |
| Dynamic Braking | Included |
| Height | 16.54 " |
| Width | 11.42 " |
| Depth | 12.01 " |
| H x W x D | 12.01 " x 11.42 " x 16.54 " |
| Net Weight | 72 lbs |
| Gross Weight | 77.16 lbs |
Description

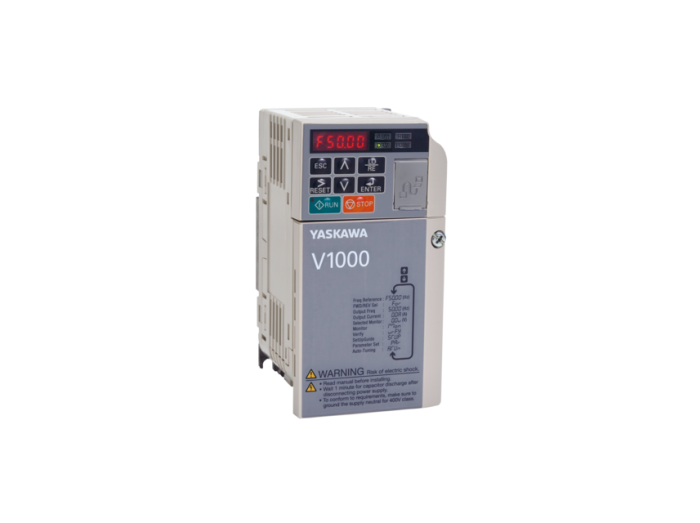

Drives, V1000-4X Series
Item #
CIMR-VU4A0038GAA
Drive, AC, 20HP, 480V, 3PH, 31A, CT
V1000-4X Series Information
The V1000‑4X is a version of the standard V1000 in an integral enclosure that meets NEMA type 4X/12 indoor use requirements, UL type 4X/12 standards, and the IP66 rating of IEC 529. This enclosure provides the protection required in tough washdown or dust‑tight environments, common in Food and Beverage Processing, Packaging, Metal Machining, Woodworking, Pumping, Refrigeration, and Printing. The enclosure is coated to protect against the harmful effects of sanitizing chemicals commonly used in food industries
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|
|
DVTP0027E | dV E-Series, 208-600V, 27A, 2-4kHz, Open Panel | Surface | dv E |
Price unavailable
|
|
|
RLW-002803 | Reactor, 28A, 0.820mH, 3Ph, Open | Surface | RLW |
Price unavailable
|
|
|
RLW-002805 | Reactor, 28A, 1.300mH, 3Ph, Open | Surface | RLW |
Price unavailable
|
