CN15BN3AB
Eaton Contactors, Freedom Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

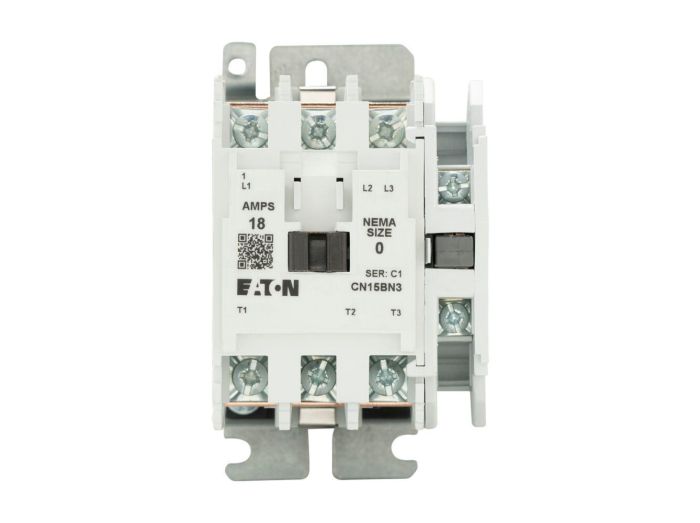

CN15BN3AB Eaton Contactors, Freedom Series
NEMA OPEN 3P CONT SIZE 0 120V COIL
MFG Item Number
CN15BN3AB
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Contactors, Freedom Series
Item #
CN15BN3AB
NEMA OPEN 3P CONT SIZE 0 120V COIL
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | CN15BN3AB |
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Description | Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 1 hp at 115V, 2 hp at 230V, 3 hp at 208,240V, 5 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 18A, Three-pole, Size 0 |
| Type | AC Non-Reversing NEMA |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO |
| Termination | Box Lug |
| Overload Relays | C306, C396 |
| NEMA Frame Size | 0 |
| H x W x D | 3.50 " x 4.60 " x 4.70 " |
| Net Weight | 1.2 lbs |
| Gross Weight | 1.2 lbs |
