CN15KN3A Eaton Contactors, Freedom Series
FDM CTR FVNR SZ3 3P 120V
MFG Item Number
EATON-CN15KN3A
Eaton

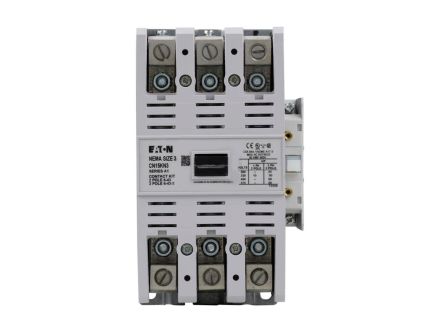

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

CN15KN3A Eaton Contactors, Freedom Series

FDM CTR FVNR SZ3 3P 120V
MFG Item Number
EATON-CN15KN3A
Eaton
Item Number
CN15KN3A
Series
Freedom
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Contactors, Freedom Series
Item #
CN15KN3A
FDM CTR FVNR SZ3 3P 120V

Freedom Series Information

  • 12~120VDC; 24~600VAC Coils
  • Up to 450 HP @ 240V
  • Up to 900 HP @ 480V
  • UL; CSA Approved
  • Up to 1350 Amps
Freedom Series contactors feature long life twin break, silver cadmium oxide contacts which provide excellent conductivity and superior resistance to welding and arc erosion. Non‑reversing contactors are most commonly used to switch motor loads in applications where running over current protection is either not required or is provided separately.

  • 2, 3, 4, or 5 Poles
  • IP20 Finger Protection Shields Available
  • Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
  • Adequate for most general duty control applications.

Links

Specifications

Specifications
Country of Origin Dominican Republic
Manufacturer Part Number EATON-CN15KN3A
Manufacturer Eaton
Product Series Freedom
Family Series Eaton Contactors, Freedom Series
Description Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 3 open enclosure - 90 A, Three-pole, 120/60 or 110/50 coil voltage
Type AC Non-Reversing NEMA
Nominal Coil Voltage 120 VAC
Coil Voltage 120 VAC
Coil Type Magnetic
Poles 3NO
Auxiliary Contact 1NO
Termination Box Lug
Overload Relays C306, C396
NEMA Frame Size 3
H x W x D 6.40 " x 8.60 " x 10.20 "
Net Weight 8.3 lbs
Gross Weight 8.35 lbs
