CN15NN3A
Eaton Contactors, Freedom Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

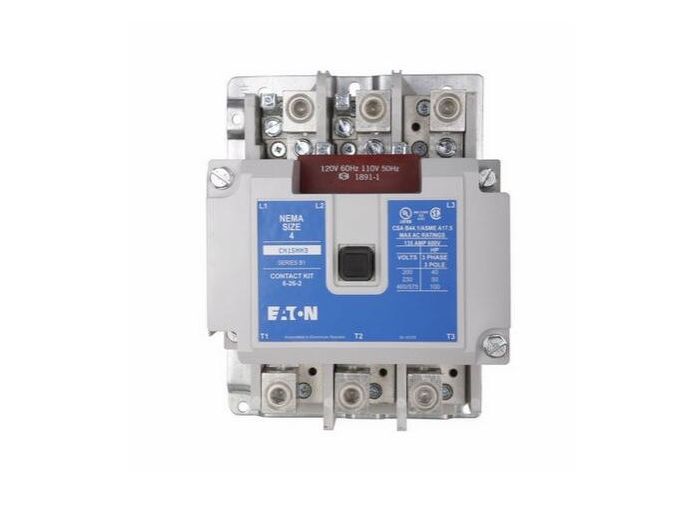

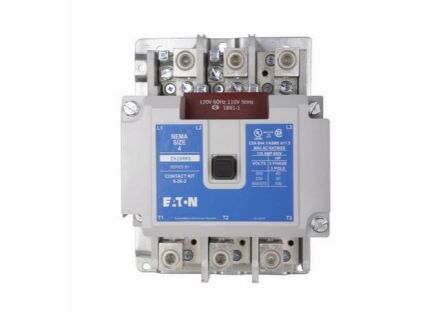

CN15NN3A Eaton Contactors, Freedom Series
FDM CTR FVNR SZ4 3P 120V
MFG Item Number
EATON-CN15NN3A
Item Number
CN15NN3A
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Contactors, Freedom Series
Item #
CN15NN3A
FDM CTR FVNR SZ4 3P 120V
Freedom Series Information
- 12~120VDC; 24~600VAC Coils
- Up to 450 HP @ 240V
- Up to 900 HP @ 480V
- UL; CSA Approved
- Up to 1350 Amps
- 2, 3, 4, or 5 Poles
- IP20 Finger Protection Shields Available
- Designed to 2,000,000 electrical and 20,000,000 mechanical operations at maximum horsepower ratings through 20 HP @ 460V.
- Adequate for most general duty control applications.
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | EATON-CN15NN3A |
| Manufacturer | Eaton |
| Product Series | Freedom |
| Family Series | Eaton Contactors, Freedom Series |
| Description | Eaton Freedom NEMA Contactor, Full voltage non-reversing, NEMA Size 4 open enclosure - 135 A, Three-pole, 120/60 or 110/50 coil voltage |
| Type | AC Non-Reversing NEMA |
| Nominal Coil Voltage | 120 VAC |
| Coil Voltage | 120 VAC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Auxiliary Contact | 1NO |
| Termination | Box Lug |
| Overload Relays | C306, C396 |
| NEMA Frame Size | 4 |
| H x W x D | 9.30 " x 9.50 " x 16.00 " |
| Net Weight | 20.4 lbs |
| Gross Weight | 20.45 lbs |
