Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
CP110B-11 ABB Switches, Compact Series
MFG #:
CP1-10B-11
Item Number
CP110B-11

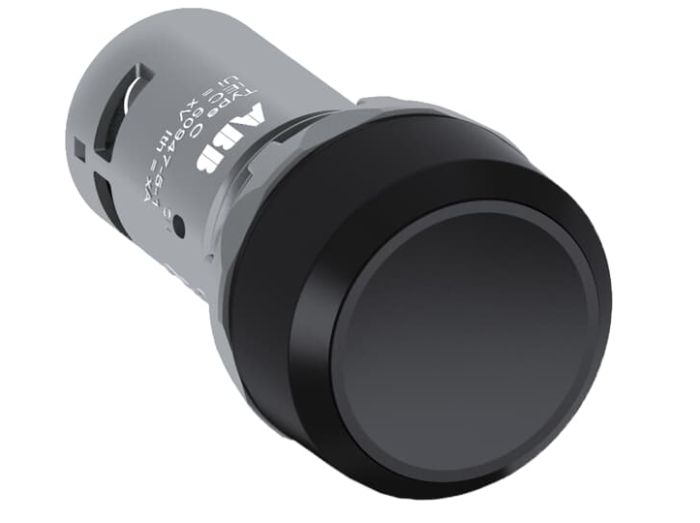

Pushbutton, Mom, Blk, Flush, 1/1, Non-Ill, 22mm Mounting, Compact, 1NO & 1NC Contact Blocks
Specifications
| Manufacturer Part Number | CP1-10B-11 |
|---|---|
| Manufacturer | ABB |
| Product Series | COMPACT |
| Family Series | ABB Switches, Compact Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO, 1NC |
| Max Voltage | 250 VAC, 250 VDC |
| Current Rating | 5 A |
| Bezel | Plastic Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Black |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP66, IP67, IP69K |
| NEMA Rating | NEMA 4X, NEMA 13 |
| Approvals | CSA, IEC, UL |
| H x W x D | 3.94 " x 8.27 " x 5.92 " |
| Net Weight | 0.0595 lbs |
| Gross Weight | 0.0595 lbs |
Description
Switches, COMPACT Series
Item #
CP110B-11
Pushbutton, Mom, Blk, Flush, 1/1,
COMPACT Series Information
- 22mm Mounting Size
- Flush or Extended Types
- Finger‑Safe Screw Terminals
- NEMA 13,4X; IP65
- UL; CSA; IEC Approvals
- Reliable and Durable Design
- Fast Mounting
- Low Built‑in Depth
