Specifications
| Country of Origin | China |
|---|---|
| Manufacturer Part Number | CPS20.121 |
| Manufacturer | Puls |
| Product Series | Dimension |
| Family Series | Puls Power Supplies, Dimension Series |
| Power | 360 W, 405 W |
| Nominal Input Voltage | 120 VAC, 240 VAC |
| AC Voltage | 100-240 VAC |
| Input Frequency | 60 Hz |
| Phase | 1 |
| Nominal Output Voltage | 12 VDC |
| Output VDC | 12-15 VDC |
| Output Current | 30 A |
| Mounting | DIN Rail |
| Enclosed | Yes |
| Output Voltage Adj. | Yes |
| Overvoltage Protection | No |
| Overload Protection | No |
| Short Circuit Protection | No |
| Power Factor Correction | Yes |
| Parallel Operation | No |
| Remote Sensing | No |
| Remote On/Off Control | No |
| Operating Temperature | -13-158 °F |
| H x W x D | 3.66 " x 5.51 " x 5.91 " |
| Net Weight | 2.155 lbs |
| Gross Weight | 2.425 lbs |
Description
Power Supplies, Dimension Series
Item #

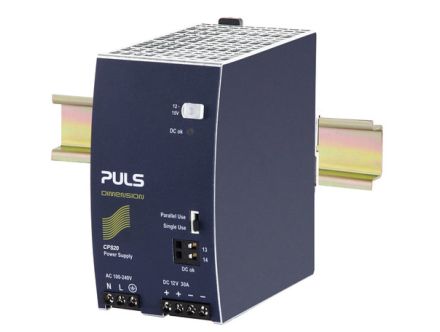

CPS20.121
Power Supply, 12V, 30A, 1PH
Dimension Series Information
- Single Output
- 12~72 VDC Outputs Available
- Up tp 40 Amp Outputs Available
- 100~552 VAC Inputs Available
- CE, UL and C‑UL Approvals
- DIN Rail Mount
- High Efficiency ‑ Up to 96%
- Single or Three Phase Units
