Series

Dimension

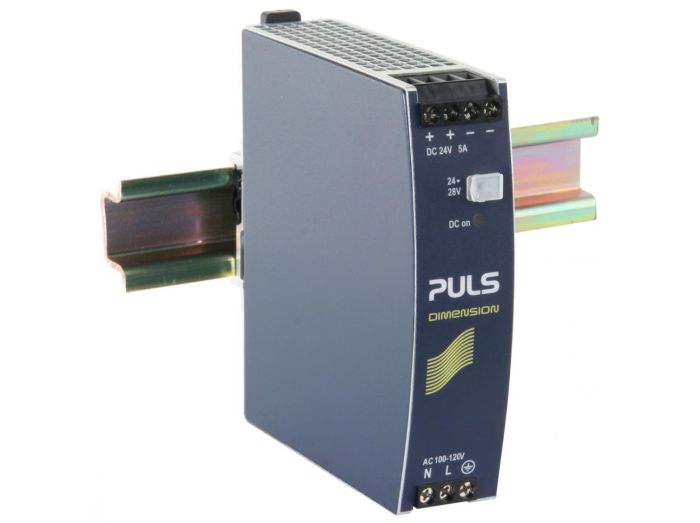

CS5.243 Puls Power Supplies, Dimension Series

MFG #:

CS5.243

POWER SUPPLY, 24VDC, 5A, 1PH, 120W SWITCHER, 100-120VAC INPUT 124mmHx32mmWx117mmD, SCREW TERMINAL

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Series

Dimension

CS5.243 Puls Power Supplies, Dimension Series

Name: CS5.243 Puls Power Supplies, Dimension Series
Brand: Puls
SKU: CS5.243-PULS
Price: 282.61 USD
Availability: InStock

MFG #:

CS5.243

POWER SUPPLY, 24VDC, 5A, 1PH, 120W SWITCHER, 100-120VAC INPUT 124mmHx32mmWx117mmD, SCREW TERMINAL

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Country of Origin	China
Manufacturer Part Number	CS5.243
Manufacturer	Puls
Product Series	Dimension
Family Series	Puls Power Supplies, Dimension Series
Power	120 W
Nominal Input Voltage	120 VAC
AC Voltage	100-120 VAC
Input Frequency	47-63 Hz
Phase	1
Nominal Output Voltage	24 VDC
Output VDC	24-28 VDC
Output Current	5 A
Number of Outputs	1
Mounting	DIN Rail
Enclosed	Yes
Encapsulated	No
Output Voltage Adj.	Yes
Overvoltage Protection	Yes
Overload Protection	Yes
Short Circuit Protection	Yes
Power Factor Correction	No
Parallel Operation	No
Remote Sensing	No
Remote On/Off Control	No
Operating Temperature	14-158 °F
Approvals	CCC, CE, cURus, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D	2.44 " x 5.51 " x 5.91 "
Net Weight	1.1025 lbs
Gross Weight	1.3228 lbs

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Mounting	Series	Price
UF20.241	BUFFER UNIT, TYP 310ms @24V, 20A		UF	Price unavailable
YRM2.DIODE	REDUNDANCY MODULE WITH DIAGNOSTICS	DIN Rail	Dimension	Price unavailable
ZM1.WALL	MOUNTING BRACKET, (pkg / 2pcs) FOR PANEL MTG Q SERIES POWER SUPPLY			Price unavailable
ZM11.SIDE	Mounting Bracket, for Side Mounting of Q Series Power Supplies			Price unavailable
