Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | CW1B-M1E10G |
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO |
| Max Voltage | 250 VAC, 250 VDC |
| Bezel | Plastic Round |
| Lens/Button Shape | Round Flush |
| Operator Color | Green |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 4X |
| Approvals | CE, CSA, UL |
| H x W x D | 1.85 " x 1.18 " x 1.94 " |
| Net Weight | 0.08 lbs |
| Gross Weight | 0.08 lbs |
Description

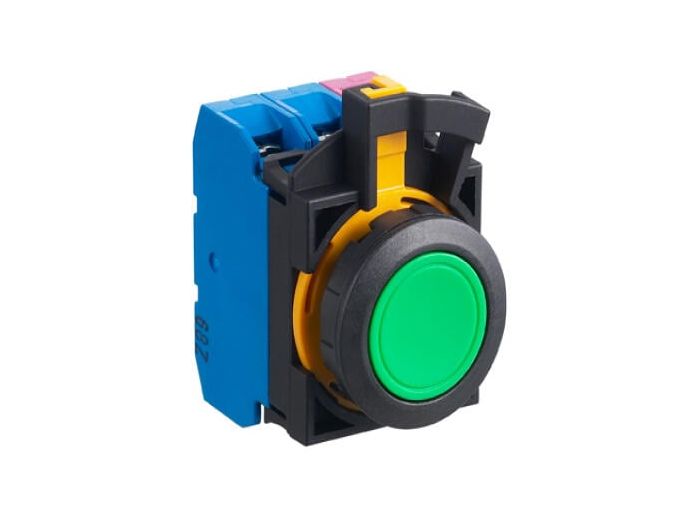

Switches, CW Series
Item #
CW1B-M1E10G
Pushbutton, Mom, Grn, Flush, 1NO,
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
