CW1L-M1E10QHG
IDEC Switches, CW Series

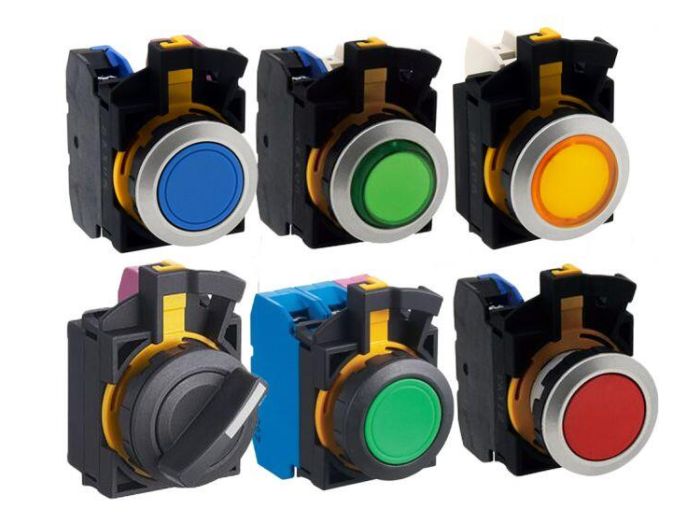

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
CW1L-M1E10QHG IDEC Switches, CW Series
Pushbutton, Mom, Grn, Flush, 120V
MFG Item Number
CW1L-M1E10QHG
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, CW Series
Item #
CW1L-M1E10QHG
Pushbutton, Mom, Grn, Flush, 120V
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | CW1L-M1E10QHG |
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Description | Pushbutton, Mom, Grn, Flush, 120V Direct, 22mm Mounting, LED, 1NO Contact Blocks, Blk Flush Bezel |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO |
| Max Voltage | 300 VAC, 300 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 120 VAC, 125 VDC |
| Lens/Button Shape | Round Flush |
| Operator Color | Green |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| Net Weight | 0.083 lbs |
| Gross Weight | 0.083 lbs |
