Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | CW1L-M1E11Q4R |
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Illuminated | Yes |
| Operation | Momentary |
| Mounting | 22 mm |
| Contacts | 1NO, 1NC |
| Max Voltage | 300 VAC, 300 VDC |
| Current Rating | 10 A |
| Bezel | Plastic Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Round Flush |
| Operator Color | Red |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| Approvals | CE, CSA, UL |
| Net Weight | 0.1017 lbs |
| Gross Weight | 0.1017 lbs |
Description

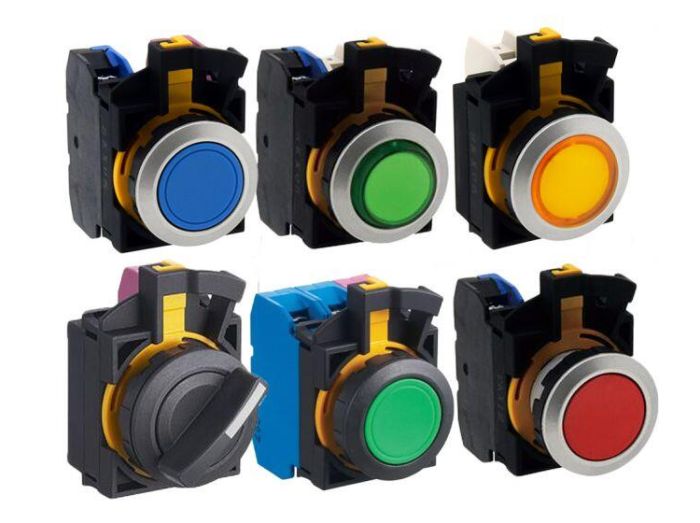

Switches, CW Series
Item #
CW1L-M1E11Q4R
Pushbutton, Mom, Red, Flush, 24V
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
