Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | CW1S-3LE30 |
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Illuminated | No |
| Number of Positions | 3 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Lever |
| Contacts | 3NO |
| Max Voltage | 300 VAC, 300 VDC |
| Operator Color | Black |
| Bezel | Plastic Round |
| Terminal Type | Fingersafe Screw |
| NEMA Rating | NEMA 4X |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| Net Weight | 0.1041 lbs |
| Gross Weight | 0.1041 lbs |
Description

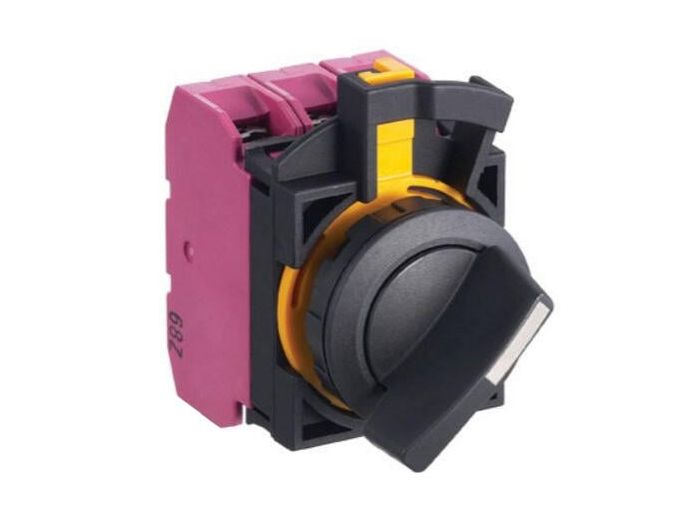

Switches, CW Series
Item #
CW1S-3LE30
SelectorSW 22MM 3position
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
