Specifications
| Country of Origin | Japan |
|---|---|
| Manufacturer Part Number | CW4K-2BE10-1H |
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Illuminated | No |
| Number of Positions | 2 |
| Mounting | 22 mm |
| Selector Function | Maintained |
| Operator Type | Key |
| Contacts | 1NO |
| Bezel | Metal Round |
| Terminal Type | Fingersafe Screw |
| NEMA Rating | NEMA 4X |
| Approvals | CE, CSA, UL |
| Protection Rating | IP65 |
| Comments | Key Code 1H (Non-Standard) |
| H x W x D | 1.75 " x 1.20 " x 4.35 " |
| Net Weight | 0.095 lbs |
| Gross Weight | 0.095 lbs |
Description

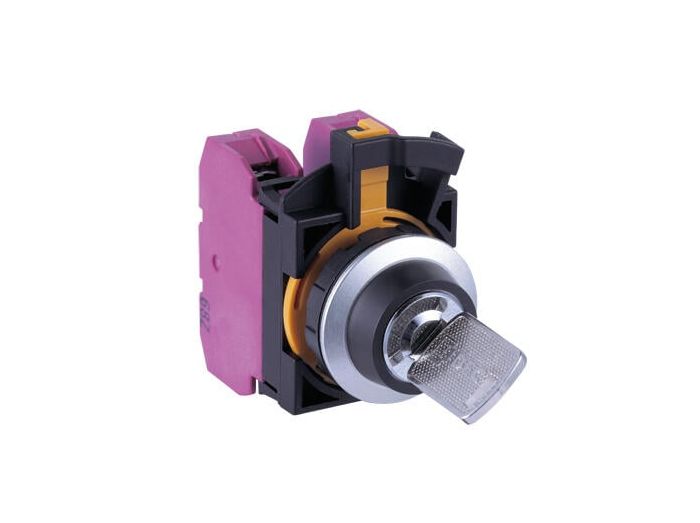

Switches, CW Series
Item #
CW4K-2BE10-1H
KeySelectorSW 22MM 2position
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
