CW4L-A1E10Q4G
IDEC Switches, CW Series

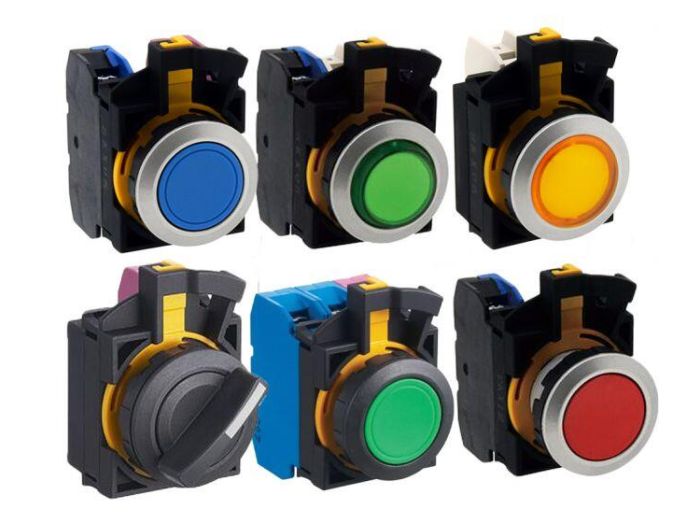

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
CW4L-A1E10Q4G IDEC Switches, CW Series
Pushbutton, Maint, Grn, Fluxh, 24V
MFG Item Number
CW4L-A1E10Q4G
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, CW Series
Item #
CW4L-A1E10Q4G
Pushbutton, Maint, Grn, Fluxh, 24V
CW Series Information
- 3.5‑mm operator travel for pushbuttons ensures comfortable and reliable operation
- Black and metallic bezels available
- Direct opening NC contact
- 10A contact rating; up to three contact blocks for non‑illuminated and two contact blocks for illuminated models can be connected
- Contact blocks can be removed by locking lever
Specifications
| Manufacturer Part Number | CW4L-A1E10Q4G |
|---|---|
| Manufacturer | IDEC |
| Product Series | CW |
| Family Series | IDEC Switches, CW Series |
| Description | Pushbutton, Maint, Grn, Fluxh, 24V Dirct, 22mm Mounting |
| Illuminated | Yes |
| Operation | Maintained |
| Mounting | 22 mm |
| Contacts | 1NO |
| Bezel | Metal Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Round Flush |
| Operator Color | Green |
| Terminal Type | Fingersafe Screw |
| Protection Rating | IP65 |
| Approvals | CE, cULus |
| Net Weight | 0.1017 lbs |
| Gross Weight | 0.1017 lbs |
