Specifications
| Manufacturer Part Number | CWCA0-22-00V18 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | CWC |
| Family Series | WEG Electric Control Relays, CWC Series |
| Nominal Voltage | 120 VAC |
| Voltage | 120 VAC |
| Number of Poles | 4 |
| Contact Configuration | 2NO, 2NC |
| Thermal Current Rating | 10 A |
| Termination | Screw |
| Mounting | DIN Rail, Panel |
| Approvals | CE, cUL |
| Comments | Timing Relays Available See Accessories Catalog Document |
| H x W x D | 2.15 " x 1.75 " x 2.25 " |
| Net Weight | 0.427 lbs |
| Gross Weight | 0.427 lbs |
Description
Control Relays, CWC Series
Item #
CWCA0-22-00V18

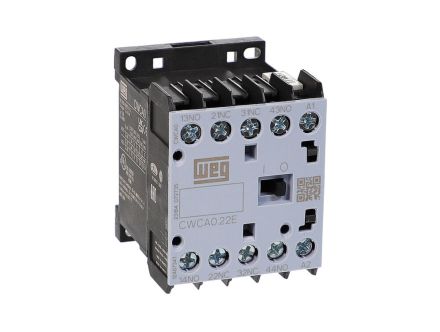

Control Relay, 4-P 2NO/2NC, 120VAC
CWC Series Information
- AC/DC Operated
- 4 Poles
- Screw Terminals
- DIN Rail or Panel Mount
- Compact Space Saving Design
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
XTRM10A22A | XT IEC Miniature Control Relay, Screw terminals, 45 mm - mini Frame size, 2NO-2NC contact configuration, 110V 50 Hz, 120V 60 Hz coil, 10A conventional thermal rating, 6A at 220/230/240V; 3A at 380/400/415V rated operational voltage | 120 VAC | DIN Rail, Screw | XT |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Approvals | Price | Action |
|---|---|---|---|---|---|---|
|
|
BFCA-02 | Auxiliary Contact, 2NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-04 | Auxiliary Contact, 4NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-11 | Auxiliary Contact, 1NO & 1NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-13 | Auxiliary Contact, 1NO & 3NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-20 | Auxiliary Contact, 2NO | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-22 | Auxiliary Contact, 2NO & 2NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-31 | Auxiliary Contact, 3NO & 1NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-40 | Auxiliary Contact, 4 N/O | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
RCC0-3D55 | Contactor, Sur Blk Rc48-127VAC CWC | WEG Electric Relays | CE, cULus |
Price unavailable
|
|
|
VRC0-2E34 | Blk Var 50-127VAC | WEG Electric Contactors | CE, cULus |
Price unavailable
|
