Specifications
| Manufacturer Part Number | CWCA0-31-00C03 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | CWC |
| Family Series | WEG Electric Control Relays, CWC Series |
| Nominal Voltage | 24 VDC |
| Voltage | 24 VDC |
| Number of Poles | 4 |
| Contact Configuration | 3NO, 1NC |
| Thermal Current Rating | 10 A |
| Termination | Screw |
| Mounting | DIN Rail, Panel |
| Approvals | CE, cUL |
| Comments | Timing Relays Available See Accessories Catalog Document |
| H x W x D | 1.88 " x 1.88 " x 2.00 " |
| Net Weight | 0.504 lbs |
| Gross Weight | 0.504 lbs |
Description

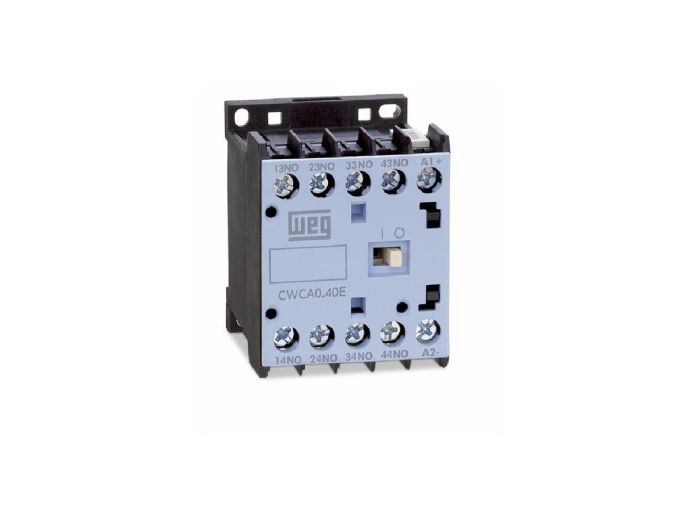

Control Relays, CWC Series
Item #
CWCA0-31-00C03
Control Relay, 4-P, 3NO/1NC, 24VDC,
CWC Series Information
- AC/DC Operated
- 4 Poles
- Screw Terminals
- DIN Rail or Panel Mount
- Compact Space Saving Design
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Approvals | Price | Action |
|---|---|---|---|---|---|---|
|
|
BFCA-02 | Auxiliary Contact, 2NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-04 | Auxiliary Contact, 4NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-11 | Auxiliary Contact, 1NO & 1NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-13 | Auxiliary Contact, 1NO & 3NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-20 | Auxiliary Contact, 2NO | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-22 | Auxiliary Contact, 2NO & 2NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-31 | Auxiliary Contact, 3NO & 1NC | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BFCA-40 | Auxiliary Contact, 4 N/O | WEG Electric Contactors | CE, cULus, UL |
Price unavailable
|
|
|
BRC-016C03 | Replacement Coil 24VDC | WEG Electric Relays |
