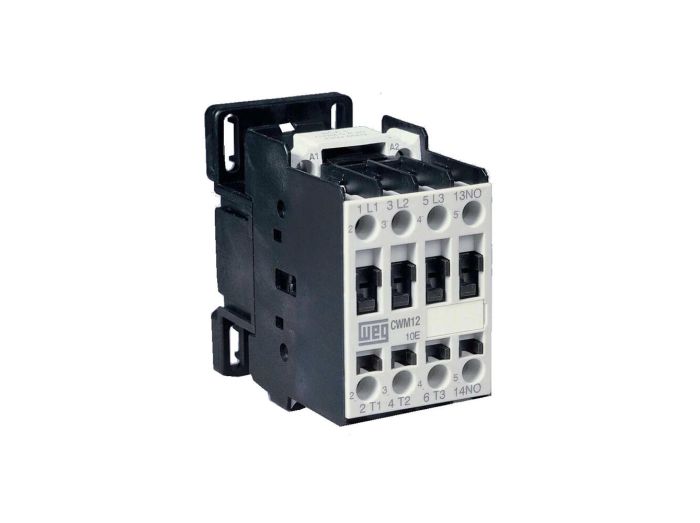

CWM12-10-30V04 WEG Electric Contactors, CWM Series

MFG #:

CWM12-10-30V04

Contactor, 3-P N/O, 24VAC, 12A Inclft.s 1-N/O Aux Contact 3HP@230V/7.5HP@460V

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

CWM

CWM12-10-30V04 WEG Electric Contactors, CWM Series

Name: CWM12-10-30V04 WEG Electric Contactors, CWM Series
Brand: WEG Electric
SKU: CWM12-10-30V04-WEG
Price: 44.95 USD
Availability: BackOrder

MFG #:

CWM12-10-30V04

Contactor, 3-P N/O, 24VAC, 12A Inclft.s 1-N/O Aux Contact 3HP@230V/7.5HP@460V

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

View Alternative Products

Specifications

Specifications
Manufacturer Part Number	CWM12-10-30V04
Manufacturer	WEG Electric
Product Series	CWM
Family Series	WEG Electric Contactors, CWM Series
Type	AC Non-Reversing IEC
Nominal Coil Voltage	24 VAC
Coil Voltage	24 VAC
Coil Type	Magnetic
Poles	3NO
Frame Size	CWM12
Auxiliary Contact	1NO
Termination	Screw
Overload Relays	RW27-1D3
General Purpose (AC1)	25 A
UL Motor Switching (AC3)	12 A
H x W x D	3.19 " x 1.77 " x 3.35 "
Net Weight	0.704 lbs
Gross Weight	0.704 lbs

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Part	Description	Series	Type	Price
CWM9-10-30V04	Contactor, 3-P N/O, 24VAC, 9A Inclft.s 1-N/O Aux Contact 3HP@230V/5HP@460V	CWM	AC Non-Reversing IEC	Price unavailable
XTCE009B10T	Eaton XT IEC contactor, 9A, 24 Vac, 50-60 Hz, 1NO, 9A, Frame B, 45 mm, 50-60 Hz, 0.5, 1, 1.25/ 3, 3, 5, 7.5 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Screw terminals, Full voltage non-reversing contactor	XT	AC Non-Reversing IEC	Price unavailable
XTCE012B10T	Eaton XT IEC contactor, 12A, 24 Vac, 50-60 Hz, 1NO, 12A, Frame B, 45 mm, 50-60 Hz, 1, 2, 2/ 3, 3, 10, 10 hp 1/3PH 115, 200, 230/200, 230, 460, 575 V, Three-pole, Non-reversing,, Screw terminals, FVNR	XT	AC Non-Reversing IEC	Price unavailable

Accessories

Compare compatible accessories for this product.

Accessories comparison
Part	Description	Series	Type	Price
RW27-1D3-C063	Overload Relay, 0.40-0.63A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D004	Overload Relay, 0.28-0.40A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D008	Overload Relay, 0.56-0.80A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D012	Overload Relay, 0.80-1.20A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D018	Overload Relay, 1.20-1.80A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D028	Overload Relay, 1.80-2.80A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D063	Overload Relay, 4.00-6.30A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-D125	Overload Relay, 8.00-12.5A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U004	Overload Relay, 2.80-4.00A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U008	Overload Relay, 5.60-8.00A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U010	Overload Relay, 7.00-10.0A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U015	Overload Relay, 10.0-15.0A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U017	Overload Relay, 11.0-17.0A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U023	Overload Relay, 15.0-23.0A, Class 10	RW	Bimetallic	Price unavailable
RW27-1D3-U032	Overload Relay, 22.0-32.0A, Class 10	RW	Bimetallic	Price unavailable
RWM40E-3-A4U002	Electronic Overload, 0.4A-2A	RWM		Price unavailable
RWM40E-3-A4U008	Electronic Overload, 1.6A-8A	RWM		Price unavailable
RWM40E-3-A4U025	Electronic Overload, 5A-25A	RWM		Price unavailable
RWM40E-3-A4U040	Electronic Overload, 8A-40A	RWM		Price unavailable
