Specifications
| Manufacturer Part Number | CWM32-00-30C34 |
|---|---|
| Manufacturer | WEG Electric |
| Product Series | CWM |
| Family Series | WEG Electric Contactors, CWM Series |
| Type | AC Non-Reversing IEC |
| Nominal Coil Voltage | 24 VDC |
| Coil Voltage | 24-28 VDC |
| Coil Type | Magnetic |
| Poles | 3NO |
| Frame Size | CWM32 |
| Auxiliary Contact | None |
| Termination | Screw |
| Overload Relays | RW27-1D3, RW67-1D3 |
| General Purpose (AC1) | 60 A |
| UL Motor Switching (AC3) | 32 A |
| H x W x D | 3.50 " x 2.17 " x 4.65 " |
| Net Weight | 1.452 lbs |
| Gross Weight | 1.452 lbs |
Description

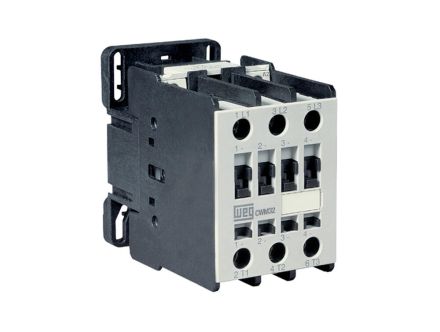

Contactors, CWM Series
Item #
CWM32-00-30C34
Contactor, 3-P N/O, 24VDC, 32A
CWM Series Information
- 24~600 VAC/VDC Coils
- Up to 300 HP @ 240V
- Up to 600 HP @ 460V
- UL, IEC, CE Approved
- Up to 800 Amps
- IP20 Finger Protection
- CSA Certified
Documents & Resources Links
Videos
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
CWB18-11-30C03 | CNTCTR 18A/ 24VDC COIL | WEG Electric Contactors | AC Non-Reversing IEC |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Type | Price | Action |
|---|---|---|---|---|---|---|
|
|
BAMRC4-D53 | Surge Block, RC, 24-48VAC | Surge Suppressor |
Price unavailable
|
||
|
BCXMF01 | Auxiliary Contact Block, 1NC, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXMF10 | Auxiliary Contact Block, 1NO, Front/ Top Mount | Auxiliary Contact |
Price unavailable
|
||
|
BCXMFA10 | Auxiliary Contact Block, 1NO, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXMFR01 | Auxiliary Contact Block, 1NC, Front | Auxiliary Contact |
Price unavailable
|
||
|
BCXML11 | Auxiliary Contact Block, 1NO/1NC, Side Mount, Mounts to Contactor | Auxiliary Contact |
Price unavailable
|
||
|
BCXML20 | Auxiliary Contact Block, 2NO, Side Mount | Auxiliary Contact |
Price unavailable
|
||
|
BCXMRL11 | Auxiliary Contact Block, 1NO/1NC, Side Mount, Mounts to Existing Aux Block-Does not Mnt to Contactot | Auxiliary Contact |
Price unavailable
|
||
|
BCXMRL20 | Auxiliary Contact Block, 2NO, Side | Auxiliary Contact |
Price unavailable
|
||
|
BECC4-40C34 | Coil Volt 24VDC | Coil |
Price unavailable
|
||
|
RW27-1D3-C063 | Overload Relay, 0.40-0.63A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D004 | Overload Relay, 0.28-0.40A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D008 | Overload Relay, 0.56-0.80A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D012 | Overload Relay, 0.80-1.20A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D018 | Overload Relay, 1.20-1.80A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D028 | Overload Relay, 1.80-2.80A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D063 | Overload Relay, 4.00-6.30A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-D125 | Overload Relay, 8.00-12.5A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U004 | Overload Relay, 2.80-4.00A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U008 | Overload Relay, 5.60-8.00A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U010 | Overload Relay, 7.00-10.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U015 | Overload Relay, 10.0-15.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U017 | Overload Relay, 11.0-17.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U023 | Overload Relay, 15.0-23.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW27-1D3-U032 | Overload Relay, 22.0-32.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW67-1D3-U040 | Overload Relay, 25.0-40.0A, Class 10 | RW | Bimetallic |
Price unavailable
|
|
|
RW67-1D3-U050 | Overload Relay, 32.0-50.0A, Class 10 | Bimetallic |
Price unavailable
|
||
|
RWM40E-3-A4U002 | Electronic Overload, 0.4A-2A | RWM |
Price unavailable
|
||
|
RWM40E-3-A4U008 | Electronic Overload, 1.6A-8A | RWM |
Price unavailable
|
||
|
RWM40E-3-A4U025 | Electronic Overload, 5A-25A | RWM |
Price unavailable
|
||
|
RWM40E-3-A4U040 | Electronic Overload, 8A-40A | RWM |
Price unavailable
|
