D14CPA2P4
MFG #:
D14CPA2P4
Specifications
| Country of Origin | Mexico |
|---|---|
| Manufacturer Part Number | D14CPA2P4 |
| Manufacturer | US Motors |
| Family Series | US Motors Motors |
| Type | Capacitor Run, Capacitor Start, General Purpose |
| Horsepower | 1/4 hp |
| Kilowatts | 0.2 kW |
| Speed | 1,725 RPM |
| RPM | 1,725 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| Frequency | 60 Hz |
| NEMA Frame | 48 |
| AC Voltage | 115 VAC, 230 VAC |
| Nominal Voltage | 120 VAC, 240 VAC |
| Enclosure | Open Drip Proof |
| Mounting | Rigid |
| Current Rating | 3.1 A |
| Composition | Rolled Steel |
| Overload Protection | Automatic |
| H x W x D | 11.00 " x 8.25 " x 12.75 " |
| Net Weight | 14.74 lbs |
| Gross Weight | 14.74 lbs |
Description
Motors, Series
Item #
D14CPA2P4
Motor, 1/4 HP, 1800 RPM, 48
Series Information
Documents & Resources Links
Added to Cart

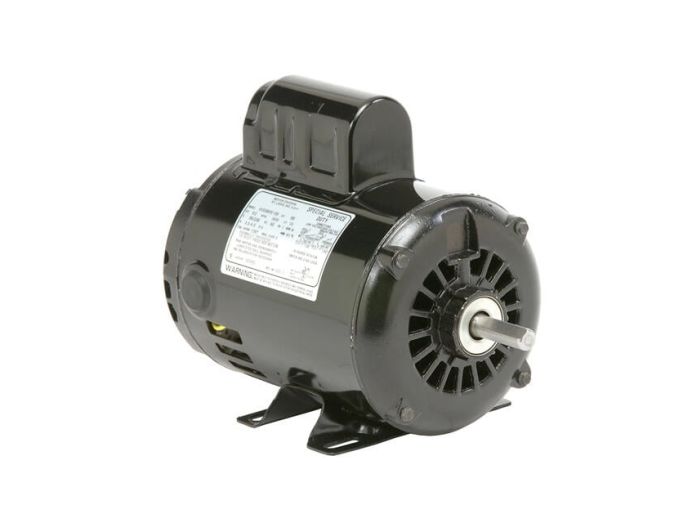

D14CPA2P4 US Motors Motors, Motor, 1/4 HP, 1800 RPM, 48
MFG #:
D14CPA2P4
Motor, 1/4 HP, 1800 RPM, 48
